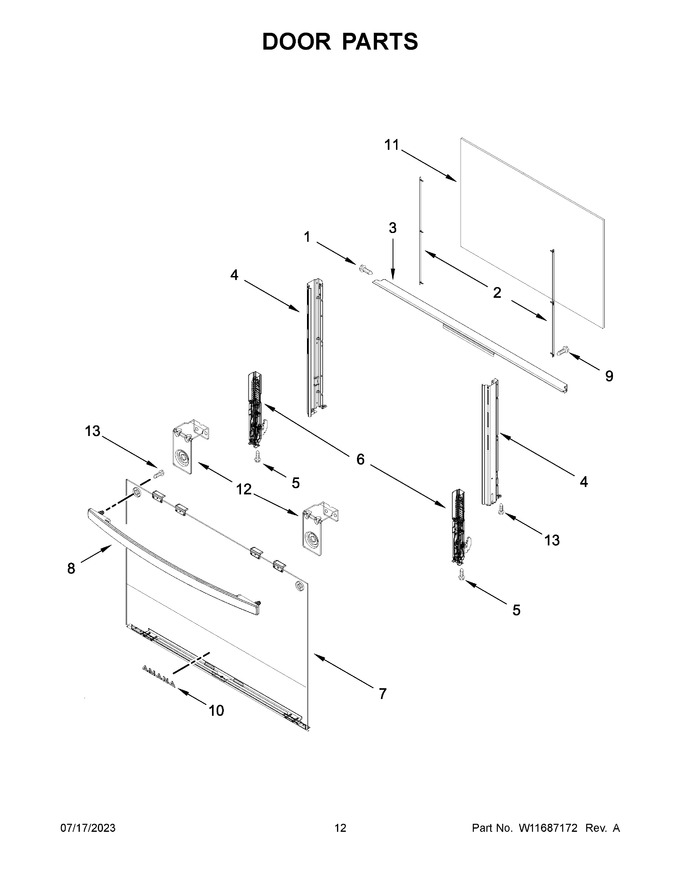

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 7.36
2	W11104748		Seal, Inner Door   (Replaces: W10292266)		Appelez-nous	-
3	W11105139		Upper Trim, Oven Door   (Replaces: W10544145)				$ 137.37
4	W11620487		Trim, Side (left)   (Replaces: W11184558)		Appelez-nous	-
5	W10837674		Screw   (Replaces: W10146346)				$ 7.25
6	W10857234		Hinge, Oven Door   (Replaces: W10535788)		Appelez-nous	-
7	W11688714		Panel, Door (stainless)   (Replaces: W11647487)		Appelez-nous	-
8	W11620538		Handle, Oven Door (black)   (Replaces: W11492899)		Appelez-nous	-
9	W11206744		Screw   (Replaces: 98008699)				$ 12.81
10	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 70.16
11	W11688716		Glass, Inner   (Replaces: W11615629)		Appelez-nous	-
12	W11712435		Handle, Support Bracket   (Replaces: W11569276)		Appelez-nous	-
13	W10647533		Screw		Appelez-nous	-
4A	W11620488		Trim, Side (right)   (Replaces: W11184560)		Appelez-nous	-
