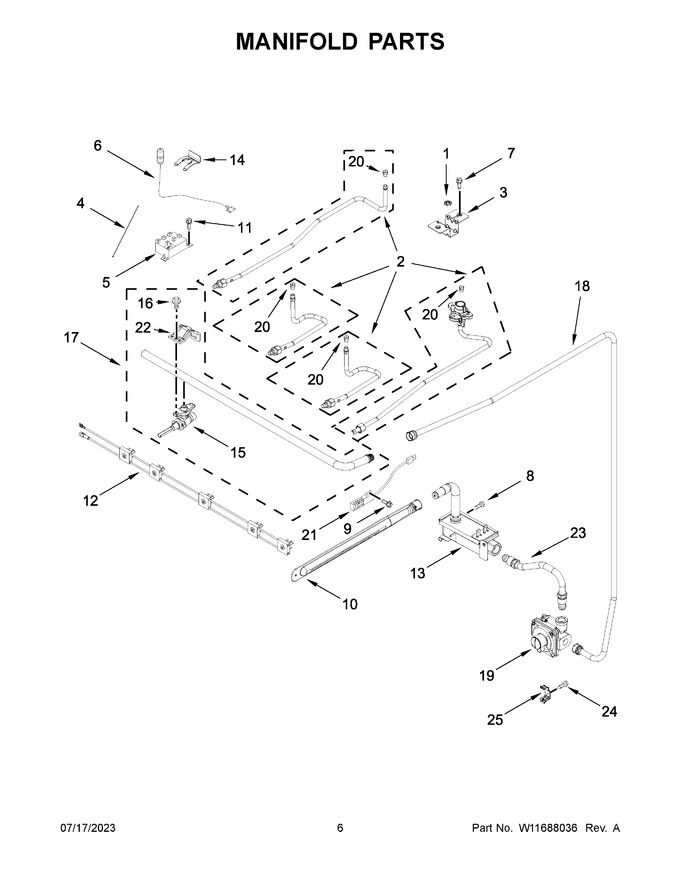

04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10610297		Nut		Appelez-nous	-
2	W10859921		Assembly, Tubing (left Front)   (Replaces: W10543959)		Appelez-nous	-
3	W11715913		Bracket, Surface Burner (left Front, Left Rear, & Right Front)   (Replaces: W10122103)		Appelez-nous	-
4	W10622750		Cable, Spark (black)		Appelez-nous	-
5	W11590249		Java Tech Spark Module 4 Pos   (Replaces: W11281166)				$ 22.06
6	W11688795		Ignitor, Top (black)   (Replaces: W11467380)		Appelez-nous	-
7	W10837674		Screw   (Replaces: W10146346)				$ 7.25
8	98013634		Screw		Appelez-nous	-
9	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
10	W11220387		Oven Burner Asm-us Electronic   (Replaces: W10650358)				$ 178.72
11	W10837731		Screw   (Replaces: W10493726)				$ 7.47
12	W11620523		Harness, Switch   (Replaces: W11562246)		Appelez-nous	-
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 148.82
14	W11688762		Clip, Ignitor   (Replaces: W10822899)		Appelez-nous	-
15	W11620105		Valve, Saddle (left Front, Left Rear, & Right Front)   (Replaces: W11509554)		Appelez-nous	-
16	98017517		Screw		Appelez-nous	-
17	W11509619		Assembly, Manifold		Appelez-nous	-
18	W11628651		Tube 3/8" Manifold To Reg   (Replaces: W10619922)		Appelez-nous	-
19	W11346659		Regulator   (Replaces: W10633327)				$ 251.26
20	WP98017348		Orifice, Natural (9.5k) (left Front, Left Rear, & Right Front)   (Replaces: 98017348)				$ 82.79
21	W11590294		Igniter, Hot Surface   (Replaces: W11506321)		Appelez-nous	-
22	W11615438		Bracket, Valve		Appelez-nous	-
23	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
24	WP98007225		Screw   (Replaces: 98007225)				$ 6.57
25	98007410		Bracket, Regulator		Appelez-nous	-
15A	W11509769		Valve, Saddle (right Rear)		Appelez-nous	-
20A	WPW10170506		Orifice, Natural (5k) (right Rear)   (Replaces: W10170506)				$ 88.07
2A	W11213836		Assembly, Tubing (left Rear)   (Replaces: W10512770)		Appelez-nous	-
2B	W10861724		Assembly, Tubing (right Front)   (Replaces: W10512771)		Appelez-nous	-
2C	W11167099		Assembly, Tubing (right Rear)   (Replaces: W10514424)				$ 28.04
6A	W11688763		Ignitor, Top (natural)   (Replaces: W11467378)		Appelez-nous	-
NI	W11620713		Kit, Lp Conversion   (Replaces: W11557686)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
