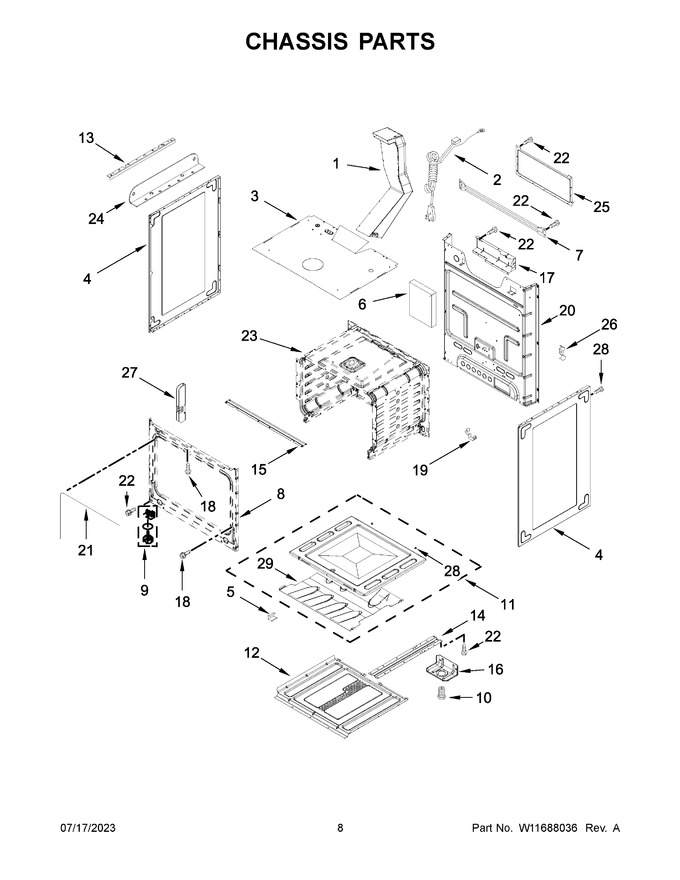

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10675411 | Box, Flue |
|
- | |||||
| 2 | W11173616 | Cord, Power (Replaces: W10640762) |
|
- | |||||
| 3 | W11319572 | Shield, Insulation (Replaces: W10164110) |
|
- | |||||
| 4 | W10816993 | Panel, Side (black (left)) (Replaces: W10666212) |
|
- | |||||
| 5 | 98005502 | Clip, Oven Botton |
|
$ 12.70 | |||||
| 6 | W11173320 | Counterweight (Replaces: W10902689) |
|
- | |||||
| 7 | 98015363 | Support, Rear |
|
$ 77.37 | |||||
| 8 | ARI438B7CB434036FE18DE4C0C5E198859F | Frame, Front (not Serviced) |
|
- | |||||
| 9 | W10819918 | Foot Leveling Assembly (front) (Replaces: W10650383) |
|
- | |||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 11 | W11688761 | Assembly, Oven Bottom (Replaces: W11568988) |
|
- | |||||
| 12 | W10670197 | Deflector, Oven |
|
- | |||||
| 13 | W10577312 | Support, Side Panel |
|
- | |||||
| 14 | W10520269 | Rail, Base |
|
- | |||||
| 15 | W10545322 | Bracket, Manifold |
|
- | |||||
| 16 | W11770643 | Bracket, Foot (Replaces: W11172758) |
|
- | |||||
| 17 | W10549293 | Safety Valve, Rear Cover |
|
- | |||||
| 18 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 16.74 | |||||
| 19 | 98005642 | Clip, Therm Bulb |
|
Immediately | $ 78.37 | ||||
| 20 | W10554678 | Back, Main |
|
- | |||||
| 21 | WPW10535778 | Seal, Oven (Replaces: W10535778) |
|
$ 78.94 | |||||
| 22 | W10837731 | Screw (Replaces: W10493726) |
|
$ 7.47 | |||||
| 23 | ARI0E41E73880FF530FBBE29D9D6A419FE4 | Liner, Oven (not Serviced) |
|
- | |||||
| 24 | W10532560 | Side Panel, Support |
|
- | |||||
| 25 | W11492823 | Cover |
|
- | |||||
| 26 | W11510655 | Clip, Tubing |
|
- | |||||
| 27 | W11161898 | Counter Support-hinge (Replaces: W10327222) |
|
- | |||||
| 28 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 7.36 | ||||
| 29 | W11688713 | Spread, Flame (bake) (Replaces: W11579393) |
|
- | |||||
| 4A | W10816993 | Panel, Side (black (right)) (Replaces: W10666211) |
|
- | |||||
| 4B | W10816996 | Panel, Side (white (left)) (Replaces: W10666176) |
|
- | |||||
| 4C | W10816996 | Panel, Side (white (right)) (Replaces: W10666141) |
|
- | |||||
| NI | W11492324 | Insulation, Wrap |
|
- | |||||
| NI | 98004294 | Wire Tie, Insulation |
|
- | |||||
| NI | W10537475 | Insulation, Back (Replaces: W11048974) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688850 | Insulation, Upper (Replaces: W10613818) |
|
- |
