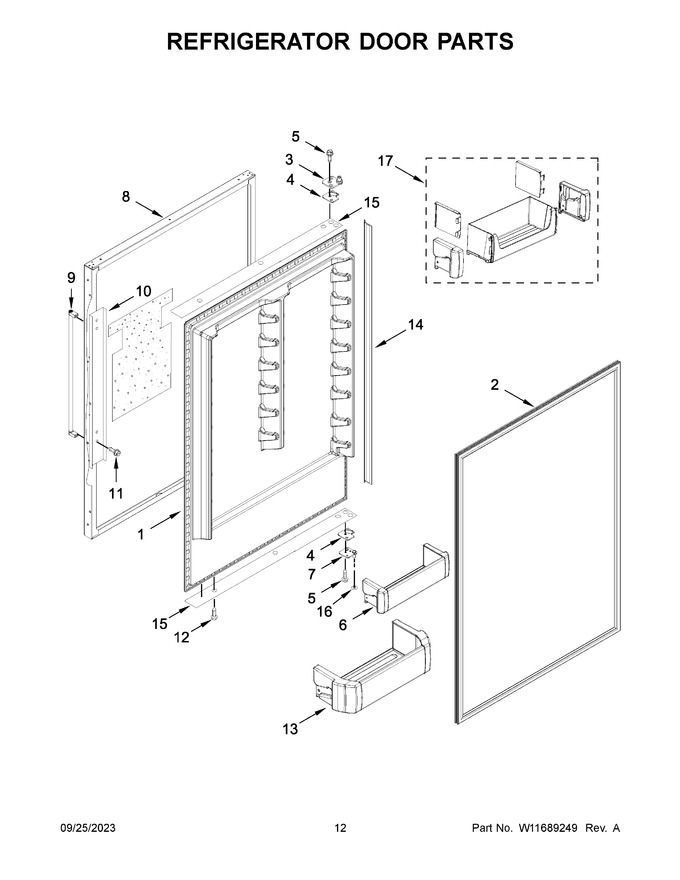

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10609631		Door, Refrigerator		Appelez-nous	-
2	W10803136		Gasket, Door (grey)   (Replaces: W10609679)				$ 314.62
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	W10529547		Bin, Door		Appelez-nous	-
7	2316807		Assembly, Bottom Hinge (left Hand)				$ 194.67
8	W10801506		Skin, Door (stainless Filler (not Serviced-included With Skin))   (Replaces: W10541587)				$ 1,011.88
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
10	W10127710		Plate, Handle Door			Immediately	$ 23.35
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
12	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
13	W10529542		Bin, Gallon Door				$ 323.81
14	W10672076		Spacer, Door (side)		Appelez-nous	-
15	W10609682		Spacer, Door (top And Bottom)				$ 132.43
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11610616		Assembly, Door Bin (top)		Appelez-nous	-
