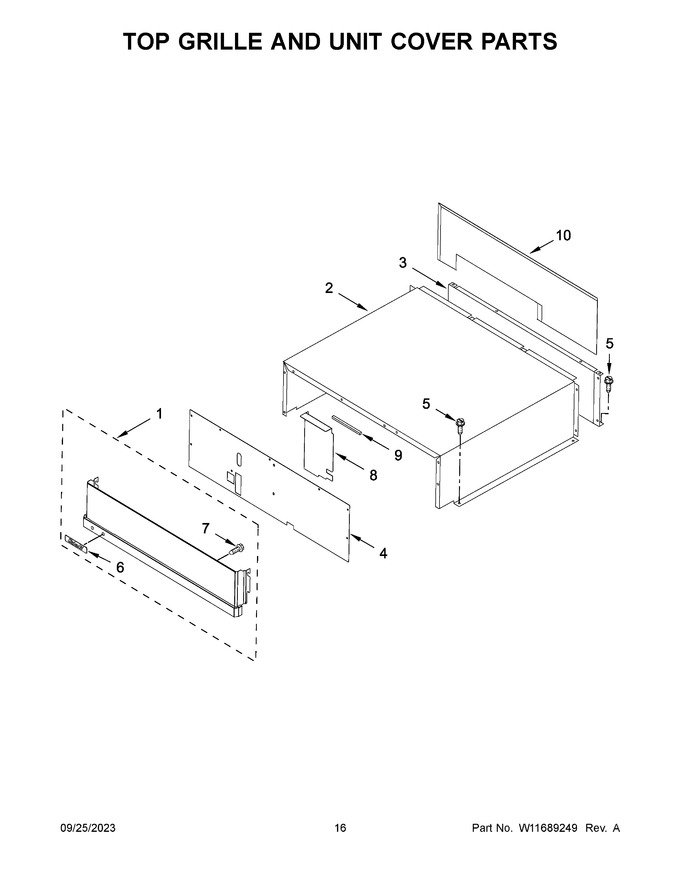

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449308		Assembly, Top Grille (stainless)   (Replaces: W10609649)				$ 345.28
2	W11735285		Cover, Unit   (Replaces: W10545068)			Immediately	$ 185.37
3	2256466		Panel, Unit Back				$ 294.50
4	W11435372		Cover, Unit Front			Immediately	$ 42.89
5	W10784922		Screw (black)		Appelez-nous	-
6	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 68.58
7	WP489399		Screw   (Replaces: 489399)				$ 6.57
8	W10645084		Divider, Air		Appelez-nous	-
9	W10645113		Gasket, Unit Cover		Appelez-nous	-
10	W11244166		Insulation, Unit Back Panel				$ 71.09

    View Diagram in Separate Window       Print Part List
