01 - Cover Sheet

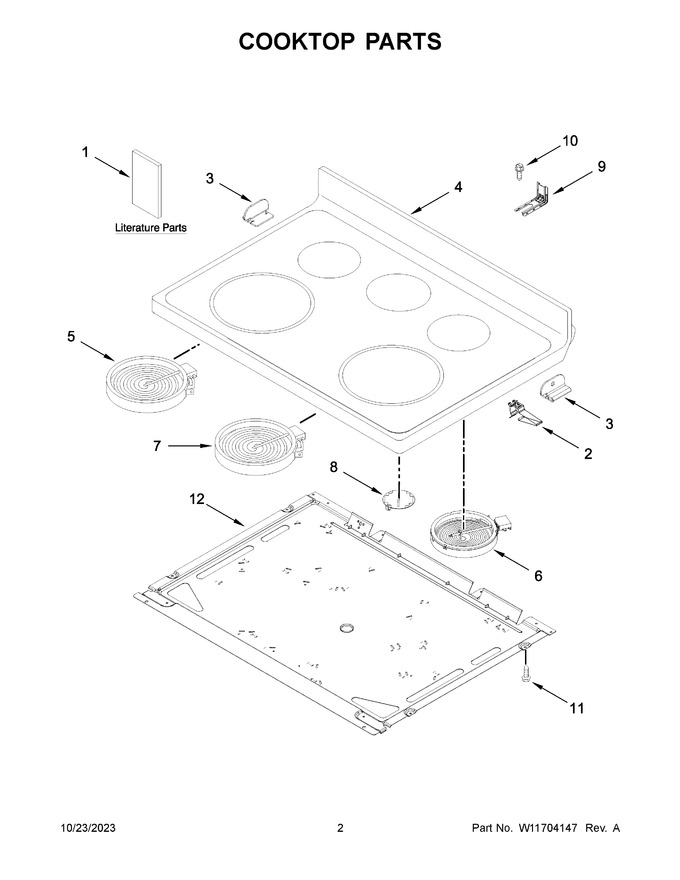

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509595 | Owners Manual |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 4 | W11381329 | Cooktop (white) (Replaces: W11370569) |
|
$ 555.26 | |||||
| 5 | W11517959 | Element (3000 And 1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | W11171119 | Element (1200w) (left Rear, Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 8 | W11706247 | Element, Warm Zone (center) (Replaces: W11668631) |
|
Immediately | $ 120.55 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 12 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 129.14 | ||||
| 1A | W11435582 | Quick Start Guide |
|
- | |||||
| 1B | W11390998 | Tech Sheet |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 31.28 | ||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 35.70 | |||||
| NI | W11766519 | Harness, Main (Replaces: W11507739) |
|
$ 210.73 | |||||
| NI | W11598759 | Harness, Warm Zone |
|
- | |||||
