View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

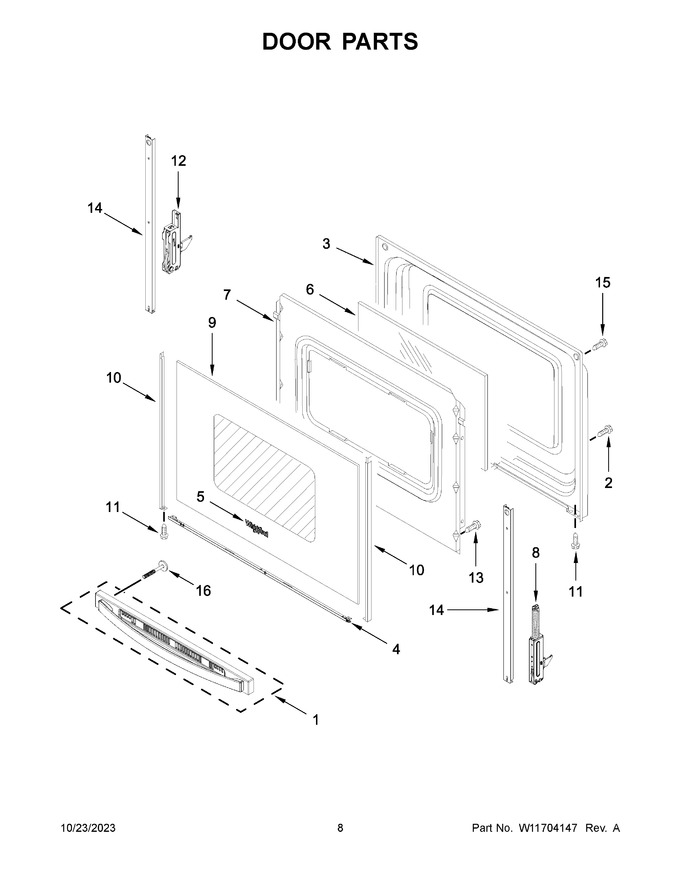

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11590861 | Trim, Top (white) (Replaces: W11242947) |
|
Immediately | $ 179.24 | ||||
| 2 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 3 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 4 | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 55.23 | ||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 154.51 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761505) |
|
$ 169.46 | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 90.51 | ||||
| 9 | WPW10409945 | Glass Assembly, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 257.39 | ||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 66.09 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 66.85 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 79.61 |
