SELECT A DIAGRAM

01 - Cover Sheet

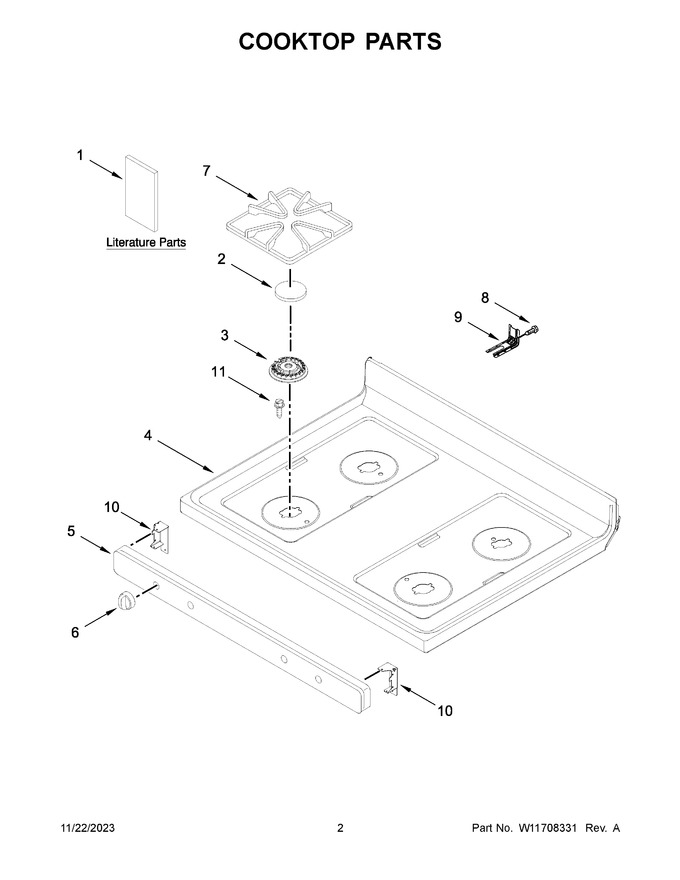

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11450808		Owners Manual		Appelez-nous	-
2	W11455147		Burner Cap Kit (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 89.76
3	W11435630		Spreader, Flame (left Front, Right Front)   (Replaces: W11352018)			Immediately	$ 73.91
4	W11475519		Cooktop (black)   (Replaces: W11331122)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 158.56
6	W11620562		Knob, Control (black)   (Replaces: W11510628)		Appelez-nous	-
7	W10915784		Grate Kit (black (set Of 4))   (Replaces: W10682667)				$ 326.83
8	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
9	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
1A	W11427467		Quick Start Guide		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 76.37
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 75.99
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	W11457167		Harness, Main		Appelez-nous	-
NI	W11645866		Harness, Bake And Broil   (Replaces: W11450461)				$ 34.64
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 12.86
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
