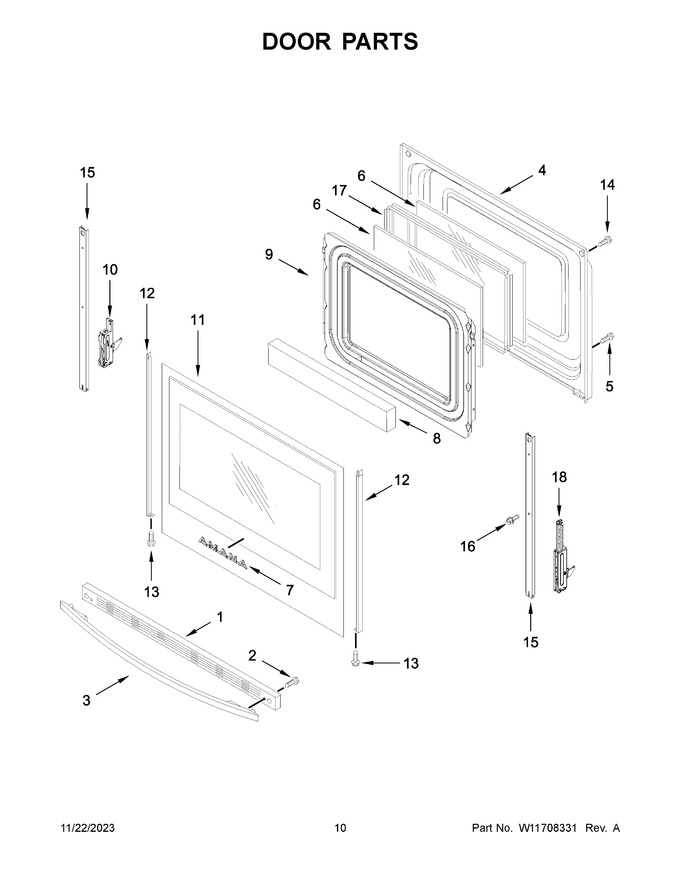

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top Vent (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 2 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.90 | ||||
| 3 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 227.39 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 208.85 | |||||
| 7 | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 70.16 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 209.98 | |||||
| 10 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 11 | W11627546 | Glass, Outer Door (stainless) (Replaces: W11603159) |
|
Immediately | $ 392.30 | ||||
| 12 | W10761018 | Trim, Door Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 15 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 24.91 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 18 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 66.14 | ||||
| 12A | W10761014 | Trim, Door Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 |
