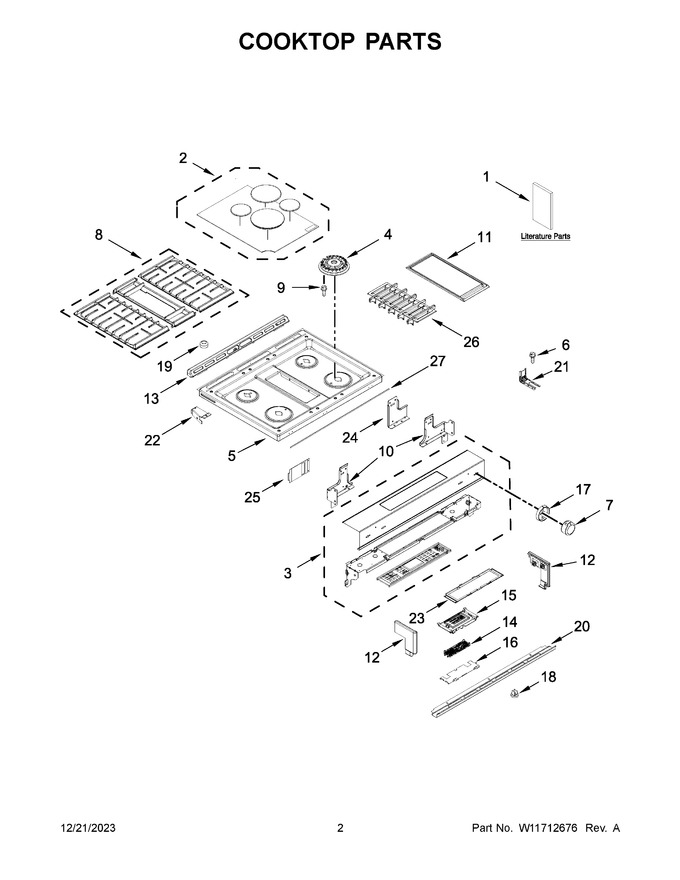

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509601 | Use And Care Guide |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black (set Of 4)) (Replaces: W11352138) |
|
- | |||||
| 3 | W11838614 | Console (stainless) (Replaces: W10901117) |
|
Immediately | $ 520.93 | ||||
| 4 | W11435630 | Spreader, Flame (left Front And Right Front) (Replaces: W11352018) |
|
Immediately | $ 73.91 | ||||
| 5 | W11117943 | Cooktop (stainless) |
|
$ 393.12 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W10872668 | Knob (stainless (all Except Left Front)) (Replaces: W10786065) |
|
Immediately | $ 118.35 | ||||
| 8 | W11451474 | Grate Kit (black) (Replaces: W11382964) |
|
$ 341.07 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 27.05 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 59.79 | ||||
| 12 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 13 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 14 | W11100513 | Control Mrc2 (Replaces: W10759299) |
|
Immediately | $ 474.88 | ||||
| 15 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 474.88 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 17 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 102.04 | ||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 20 | W10743276 | Console, Lower Panel (stainless) |
|
$ 78.01 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 25 | W11355689 | Keypad Shield |
|
$ 20.38 | |||||
| 26 | W11451445 | Grill, Air (black) (Replaces: W11383491) |
|
- | |||||
| 27 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 22.61 | |||||
| 10A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 12A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 1A | W11565454 | Tech Sheet |
|
- | |||||
| 1B | W11435573 | Quick Start Guide |
|
- | |||||
| 1C | W11643128 | Downdraft Template (Replaces: W10817089) |
|
$ 12.97 | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 4A | W11435659 | Spreader, Flame (right Rear) (Replaces: W11352020) |
|
$ 76.37 | |||||
| 4B | W11435657 | Spreader, Flame (left Rear) (Replaces: W11352021) |
|
$ 75.99 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | W11451578 | Harness, Main |
|
- | |||||
| NI | W11123868 | Reducer, Venturi (choke) (Replaces: W10340851) |
|
$ 93.26 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11198274 | Harness, Down Draft Fan Jumper |
|
$ 105.96 |
