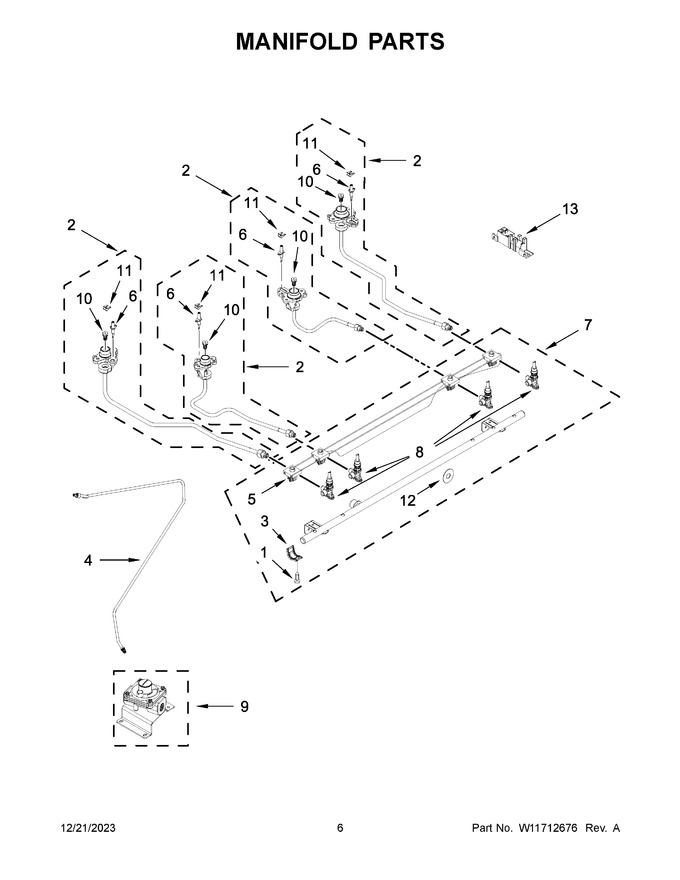

04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11451472 | Orifice Assembly (left Front) (Replaces: W11186514) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 84.82 | |||||
| 5 | W10669619 | Harness, Switch Spark |
|
$ 159.39 | |||||
| 6 | W11661929 | Electrode, Burner (left Front) (Replaces: W10669526) |
|
Immediately | $ 45.19 | ||||
| 7 | W11416335 | Manifold Assembly |
|
- | |||||
| 8 | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 175.63 | ||||
| 9 | W10661850 | Assembly, Regulator And Bracket |
|
$ 118.13 | |||||
| 10 | W10849722 | Orifice (18k) (left Front) |
|
- | |||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 13 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 95.14 | ||||
| 10A | W11677633 | Orifice (1.45k) (left Front) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 10B | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 84.11 | ||||
| 10C | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 84.11 | |||||
| 2A | W11186509 | Orifice Assembly (left Rear) |
|
Immediately | $ 89.69 | ||||
| 2B | W11186526 | Orifice Assembly (right Front) |
|
Immediately | $ 89.71 | ||||
| 2C | W11186522 | Orifice Assembly (right Rear) |
|
Immediately | $ 89.37 | ||||
| 6A | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 43.57 | |||||
| 6B | W11643126 | Electrode, Burner (right Front And Center) (Replaces: W10669524) |
|
Immediately | $ 47.89 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 43.52 | |||||
| 8A | W11451473 | Valve, Gas (left Rear) (Replaces: W11416332) |
|
$ 110.30 | |||||
| 8B | W11233561 | Valve, Gas (right Rear And Center) (Replaces: W10566057) |
|
Immediately | $ 238.25 | ||||
| NI | W11126047 | Kit, Lp Conversion (Replaces: W10566083) |
|
Immediately | $ 113.85 | ||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
