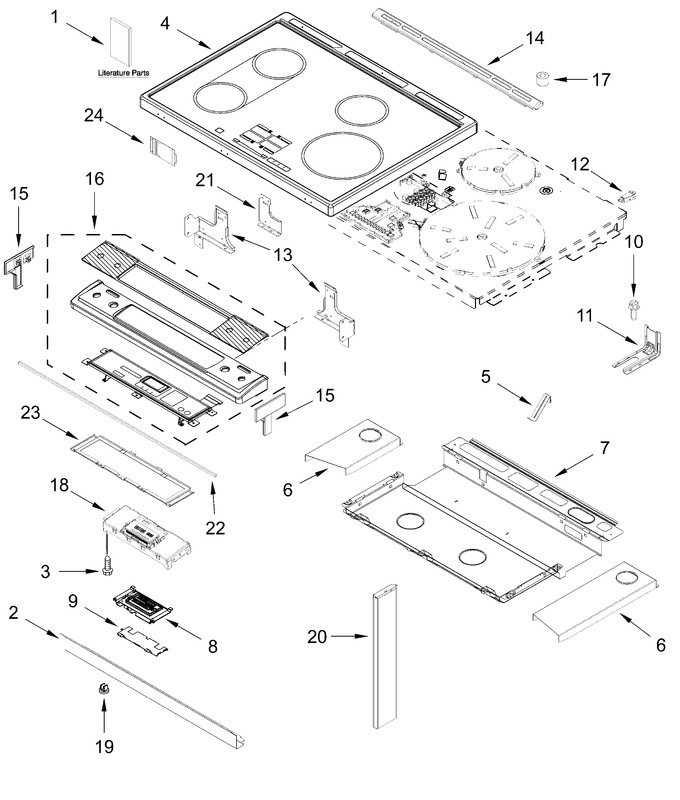

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W10743281 | Console, Lower Panel (stainless) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W11690815 | Cooktop (black) (Replaces: W11625482) |
|
$ 1,121.22 | |||||
| 5 | W11616082 | Spring (cantilever) |
|
- | |||||
| 6 | W11693489 | Duct, Recirculation Plate (left) (Replaces: W11610945) |
|
- | |||||
| 7 | W11691349 | Pan, Induction (lower) (Replaces: W11610925) |
|
- | |||||
| 8 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 530.65 | |||||
| 9 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 15 | W10557751 | Endcap (stainless, Left) |
|
$ 151.97 | |||||
| 16 | W11691366 | Console (stainless) (Replaces: W11633374) |
|
$ 949.17 | |||||
| 17 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 18 | W11802930 | Control, Mrc2 (Replaces: W11636878) |
|
Immediately | $ 364.59 | ||||
| 19 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 20 | W11691362 | Assembly, Induction Side Duct (Replaces: W11610960) |
|
- | |||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 22 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 23 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 24 | W11158783 | Shield, Keypad |
|
- | |||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | |||||
| W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | |||||
| W11637366 | Tech Sheet |
|
- | ||||||
| W11637353 | Use And Care Guide |
|
- | ||||||
| W11691348 | Harness, Main (Replaces: W11631333) |
|
Immediately | $ 354.94 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10557754 | Endcap (stainless, Right) |
|
$ 151.97 | ||||||
| W10289170 | Support, Cooktop (left) |
|
$ 27.05 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 70.73 | ||||||
| W11693490 | Duct, Recirculation Plate (right) (Replaces: W11610944) |
|
- | ||||||
| W11644568 | Dimension Guide |
|
- | ||||||
| W11637355 | Quick Start Guide |
|
- |
