Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10602484 Panel, Drawer Front (stainless) Special Order $ 221.20

2 WP3400882 Screw   (Replaces: 3400882) In-Stock Immediately $ 6.80

3 W11452957 Baffle, Drawer Panel Appelez-nous -
4 WPW10318026 Bracket, Mounting   (Replaces: W10318026) Special Order $ 35.34

5 8004P02460 Spacer, Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

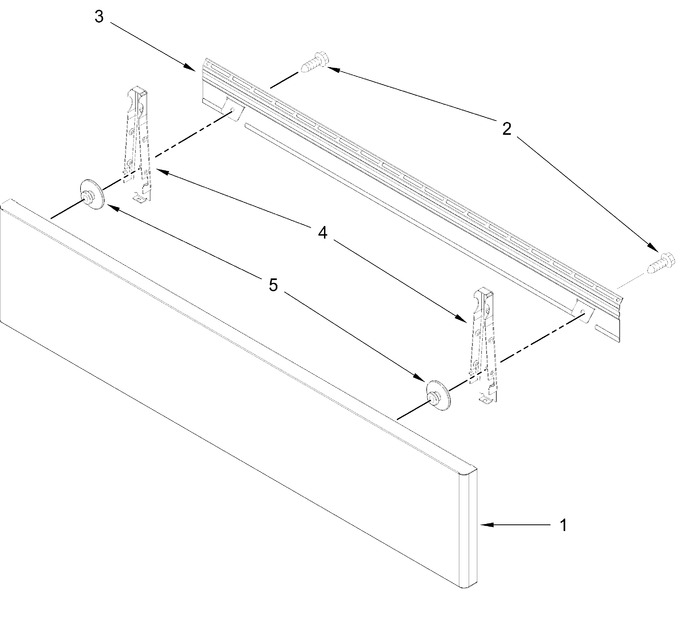

Diagram for JIS1450ML1
