01 - Cover Sheet

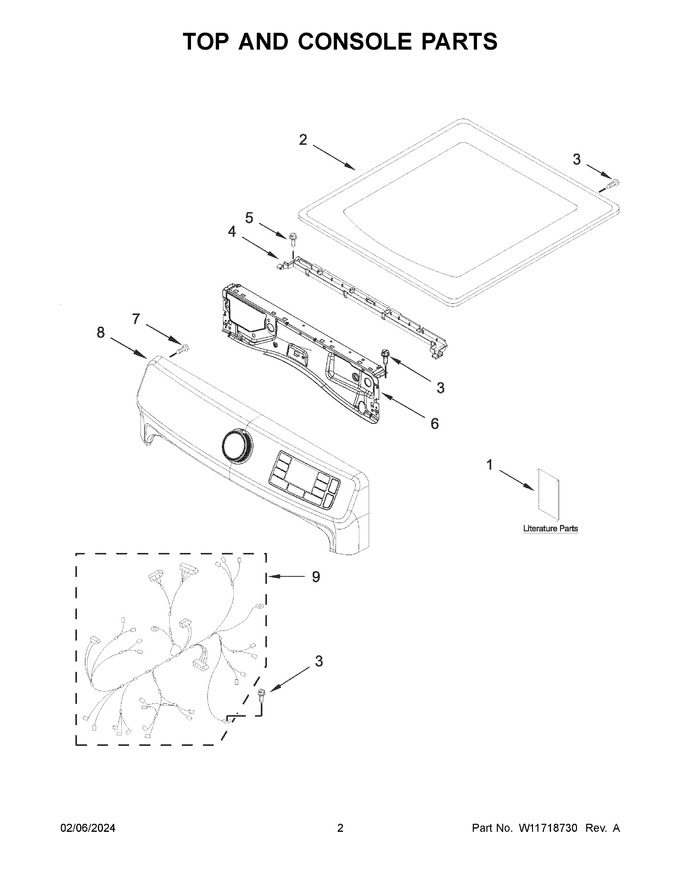

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	W11315730		Top (black)   (Replaces: W11200177)				$ 227.07
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11310027		Channel, Water   (Replaces: W11255768)				$ 21.37
5	W11686675		Screw   (Replaces: 12990702)				$ 12.84
6	W11480682		Bracket, Console				$ 73.09
7	WP8533993		Screw   (Replaces: W10146359)				$ 10.09
8	W11636630		Assembly, Console (black)   (Replaces: W11580418)				$ 541.56
9	W11157861		Harness, Main				$ 229.83
1A	W11459720		Tech Sheet		Appelez-nous	-
1B	W11460669		Wiring Diagram		Appelez-nous	-
1C	W11550671		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
