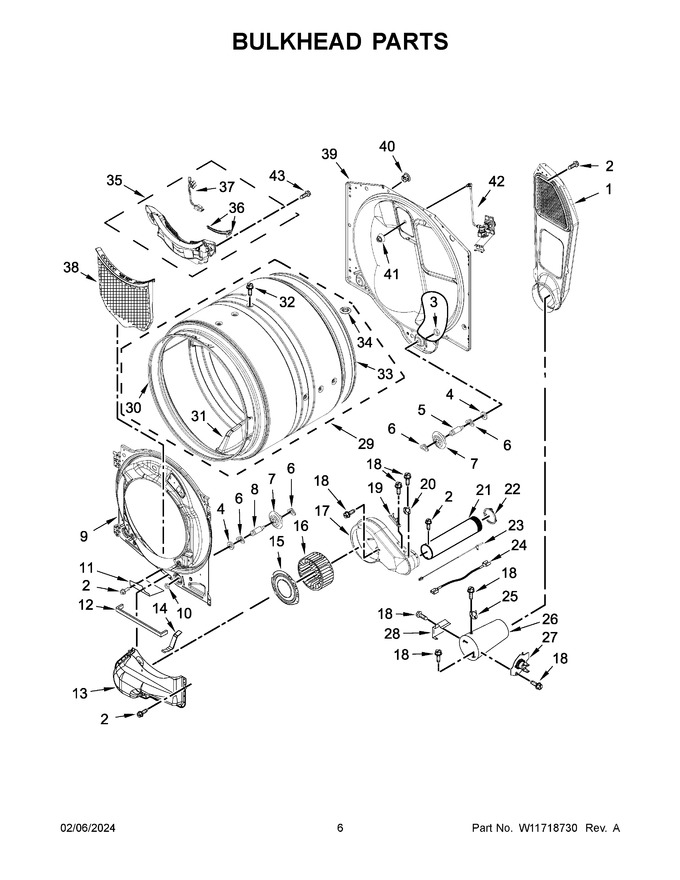

04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10293765 | Assembly, Air Duct (Replaces: W10293765) |
|
$ 319.99 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 4 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 5 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 6 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 7 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 8 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 9 | W11712678 | Bulkhead, Front (Replaces: W10673493) |
|
Immediately | $ 225.65 | ||||
| 10 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 11 | W11257251 | Shield, Blower |
|
$ 64.85 | |||||
| 12 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 26.13 | ||||
| 13 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 197.73 | |||||
| 14 | W10414388 | Clip, Lint Duct |
|
$ 13.10 | |||||
| 15 | W11688571 | Assembly, Collar (includes Seal) (Replaces: W11655534) |
|
$ 86.88 | |||||
| 16 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 73.78 | ||||
| 17 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 134.72 | ||||
| 18 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 19 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 79.59 | ||||
| 20 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 21 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 125.46 | ||||
| 22 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 23 | W11396709 | Thermistor, Gas Inlet (Replaces: W10623852) |
|
Immediately | $ 78.60 | ||||
| 24 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 158.84 | |||||
| 25 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 128.29 | ||||
| 26 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 27 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 65.26 | ||||
| 28 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 29 | W10381481 | Assembly, Drum (complete) |
|
Immediately | $ 399.10 | ||||
| 30 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 20.36 | ||||
| 31 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 35.96 | |||||
| 32 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 33 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 34 | W10665050 | Cap, Plug |
|
$ 18.14 | |||||
| 35 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 301.98 | ||||
| 36 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 37 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.06 | ||||
| 38 | W11758174 | Lint Screen (gray) (Replaces: W10516085) |
|
Immediately | $ 48.51 | ||||
| 39 | W11299321 | Bulkhead, Rear (Replaces: W11209933) |
|
Immediately | $ 343.53 | ||||
| 40 | 8529007 | Plug, Rear Bulkhead |
|
$ 70.98 | |||||
| 41 | W11230609 | Nozzle, Cap (Replaces: W11100488) |
|
Immediately | $ 7.42 | ||||
| 42 | W11216837 | Valve And Hose Assembly (Replaces: W11157054) |
|
Immediately | $ 153.66 | ||||
| 43 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 |
