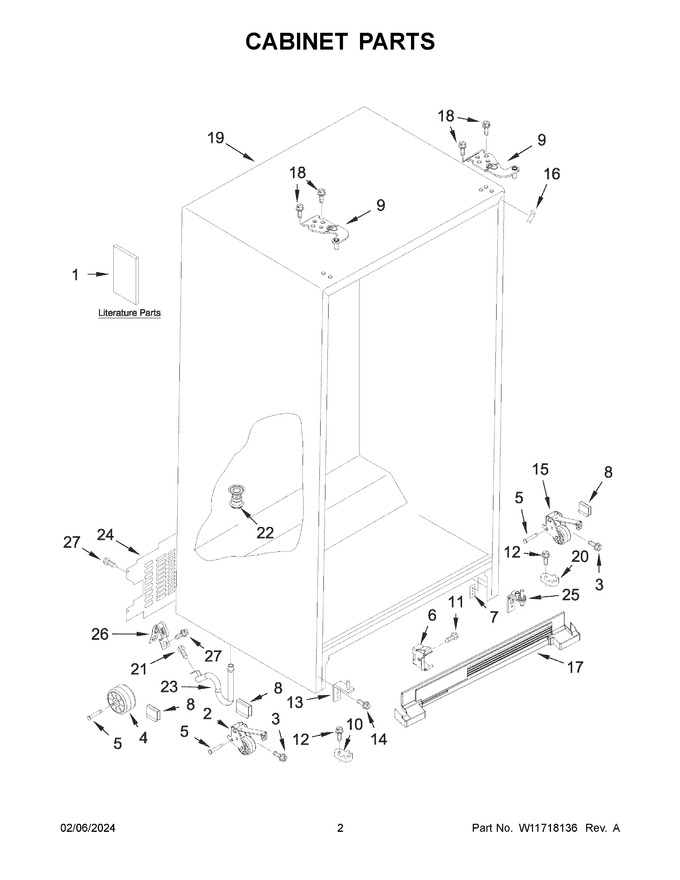

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11439249 | User Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 66.51 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 13.28 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 17.21 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 17.21 | ||||
| 9 | W11505709 | Hinge, Top (left Hand) (Replaces: W11167022) |
|
$ 60.77 | |||||
| 10 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 12.36 | ||||
| 11 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 12 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.27 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 65.60 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 15 | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 66.51 | ||||
| 16 | W11219642 | Filler, Wrapper (grey) |
|
Immediately | $ 11.57 | ||||
| 17 | W11282561 | Grille (grey) (Replaces: W11226348) |
|
$ 116.24 | |||||
| 18 | W11579735 | Screw, Hinge (Replaces: W10290781) |
|
Immediately | $ 13.26 | ||||
| 19 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 20 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 13.15 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: W11424515) |
|
Immediately | $ 48.11 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W11404685) |
|
$ 32.88 | |||||
| 24 | W11778265 | Assembly, Cover (Replaces: W11613261) |
|
$ 86.47 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator - Also Includes Door Cam) (Replaces: W11097327) |
|
$ 65.95 | |||||
| 26 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 27 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 1A | W11641236 | Tech Sheet (english) |
|
- | |||||
| 1B | W11641242 | Tech Sheet (french) |
|
- | |||||
| 1C | W11647266 | Tech Sheet, Energy Guide |
|
- | |||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 23.36 | |||||
| 9A | W11505710 | Hinge, Top (right Hand) (Replaces: W11167023) |
|
$ 60.77 |
