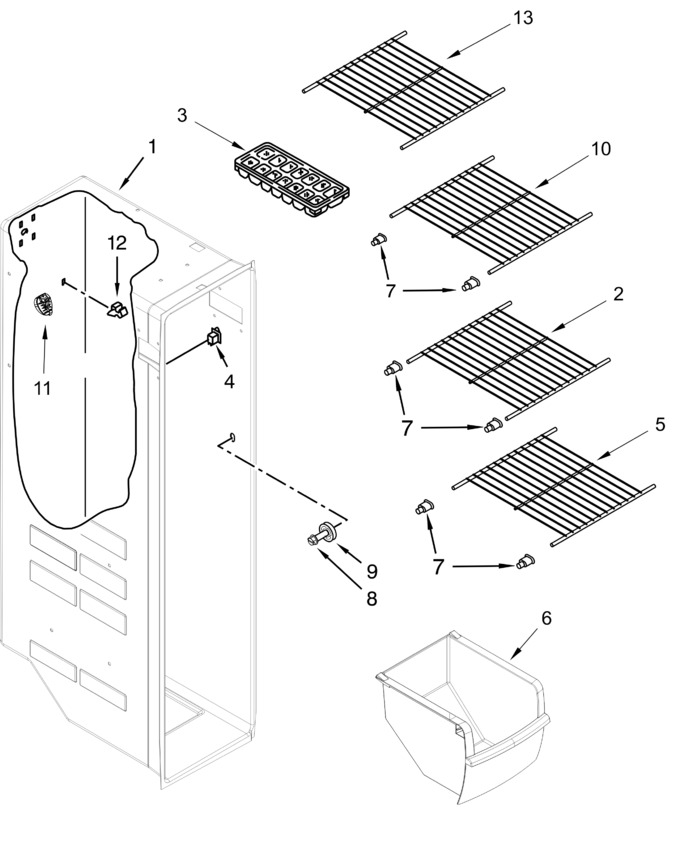

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10318948 | Shelf, Wire (Replaces: W10318948) |
|
$ 139.71 | |||||
| 3 | WP841180A | Tray, Ice (Replaces: 2151664) |
|
Immediately | $ 43.06 | ||||
| 4 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 35.18 | ||||
| 5 | WPW10318947 | Shelf, Wire (Replaces: W10318947) |
|
$ 82.63 | |||||
| 6 | W11577967 | Bin, Freezer (Replaces: W11427432) |
|
$ 86.67 | |||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 13.23 | ||||
| 8 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.23 | |||||
| 9 | W11223328 | Stud, Shelf (Replaces: 2196208) |
|
Immediately | $ 13.29 | ||||
| 10 | WPW10318961 | Shelf, Wire (Replaces: W10318961) |
|
Immediately | $ 73.40 | ||||
| 11 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 38.37 | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 9.85 | |||||
| 13 | W10318945 | Shelf, Wire |
|
$ 92.88 |
