| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11518736 |
|
Door, Left (includes Gasket) (stainless) (Replaces: W11405217) |
|
|
|
$ 1,130.24 |
|
|
| 2 |
W11436604 |
|
Door, Right (includes Gasket) (stainless) (Replaces: W11377901) |
|
|
|
$ 886.52 |
|
|
| 3 |
WPW10238319 |
|
Screw (Replaces: W10238319) |
|
|
|
$ 7.98 |
|
|
| 4 |
W11171728 |
 |
Assembly, Ice Door (Replaces: W10549592) |
|
|
|
$ 216.44 |
|
|
| 5 |
W10904595 |
 |
Latch, Door (left Hand) (Replaces: W10712952) |
|
|
|
$ 18.04 |
|
|
| 6 |
W10806457 |
 |
Mullion, Door (grey) (Replaces: W10698199) |
|
|
Immediately |
$ 283.65 |
|
|
| 7 |
W11311945 |
 |
Screw (Replaces: 12990204) |
|
|
|
$ 14.72 |
|
|
| 8 |
W11163764 |
 |
Handle, Door (stainless) (Replaces: W11045530) |
|
|
Immediately |
$ 183.31 |
|
|
| 9 |
WP98165 |
 |
Screw (Replaces: 12990504) |
|
|
|
$ 8.57 |
|
|
| 10 |
W11573367 |
|
Bumper, Door (grey) (Replaces: W10407188) |
|
|
Immediately |
$ 23.35 |
|
|
| 11 |
W11223753 |
 |
Badge (Replaces: W10884773) |
|
|
Immediately |
$ 87.26 |
|
|
| 12 |
W11449276 |
|
Screw (Replaces: W11328753) |
|
|
Immediately |
$ 17.06 |
|
|
| 13 |
W11366475 |
 |
Trivet, 2 Liter (Replaces: W10728185) |
|
|
Immediately |
$ 102.33 |
|
|
| 14 |
W11371716 |
 |
Bin, Gallon (Replaces: W10728194) |
|
|
Immediately |
$ 167.63 |
|
|
| 15 |
2006254 |
|
Screw (Replaces: 12993001) |
|
|
|
$ 13.79 |
|
|
| 16 |
W11624997 |
 |
Gasket, Ice Compartment Door (Replaces: W10347085) |
|
|
|
$ 69.41 |
|
|
| 17 |
W11315302 |
|
Clip, Tube |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11813704 |
|
Board, Receiver Circuit (Replaces: W10518658) |
|
|
Immediately |
$ 328.97 |
|
|
| 19 |
W11763407 |
|
Cover, Receiver (Replaces: W10258510) |
|
|
|
$ 44.50 |
|
|
| 20 |
2006254 |
|
Screw (Replaces: 489214) |
|
|
|
$ 13.79 |
|
|
| 21 |
W10258502 |
|
Cover, Emitter |
|
|
|
$ 89.74 |
|
|
| 22 |
W10258540 |
|
Slide, Icemaker Shut Off |
|
|
|
$ 11.15 |
|
|
| 23 |
W10870822 |
 |
Board, Emitter Circuit (Replaces: W10832970) |
|
|
Immediately |
$ 228.05 |
|
|
| 24 |
WPW10400825 |
 |
Retainer, Ice Chute (Replaces: W10400825) |
|
|
|
$ 32.32 |
|
|
| 25 |
WPW10347087 |
 |
Gasket, Ice Chute (Replaces: W10347087) |
|
|
|
$ 48.97 |
|
|
| 26 |
W11684620 |
|
Vent, Thermistor (Replaces: W10646855) |
|
|
Immediately |
$ 23.16 |
|
|
| 27 |
WPW10258520 |
|
Door, Emitter (Replaces: W10258520) |
|
|
|
$ 79.65 |
|
|
| 28 |
WP2198635 |
 |
Spring, Door (Replaces: 2198635) |
|
|
|
$ 91.43 |
|
|
| 29 |
W10331749 |
|
Pin, Door |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W10407212 |
 |
Gasket, Door (grey) (Replaces: W10873938) |
|
|
Immediately |
$ 329.19 |
|
|
| 31 |
WPW10499015 |
|
Tube, Water (Replaces: W10499015) |
|
|
|
$ 128.77 |
|
|
| 5A |
W11212164 |
|
Latch, Door (right Hand) (Replaces: W10712953) |
|
|
|
$ 17.59 |
|
|

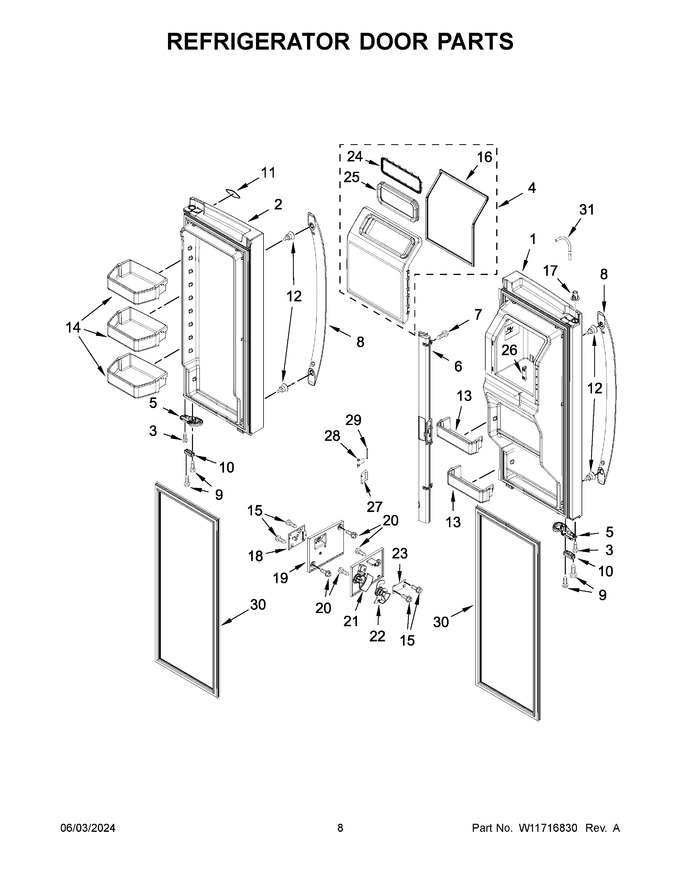

View Diagram in Separate Window
