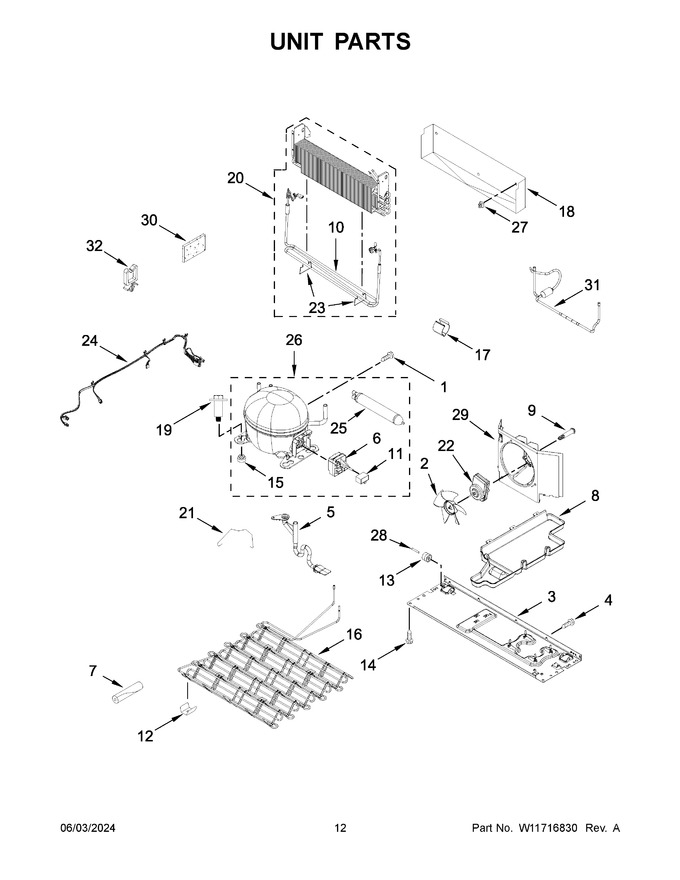

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10141625 |
|
Screw (Replaces: W10141625) |
|
|
|
$ 20.00 |
|
|
| 2 |
WP2188935 |
 |
Blade, Fan (Replaces: 2188935) |
|
|
Immediately |
$ 87.56 |
|
|
| 3 |
W11411853 |
|
Baseplate, Compressor |
|
Appelez-nous
|
- |
|
|
|
| 4 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 6.57 |
|
|
| 5 |
W11712703 |
|
Extension, Drain (Replaces: W11497478) |
|
|
|
$ 40.37 |
|
|
| 6 |
WPW10197428 |
 |
Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
|
Immediately |
$ 80.29 |
|
|
| 7 |
W11751592 |
|
Sleeve (Replaces: W10303521) |
|
|
Immediately |
$ 19.19 |
|
|
| 8 |
W11225840 |
|
Tray, Evaporator (Replaces: W10660727) |
|
|
Immediately |
$ 142.44 |
|
|
| 9 |
W10829281 |
|
Screw (Replaces: W10622701) |
|
|
|
$ 11.95 |
|
|
| 10 |
W11575359 |
|
Heater, Defrost (Replaces: W11553968) |
|
|
|
$ 107.73 |
|
|
| 11 |
WPW10350564 |
 |
Capacitor (Replaces: W10350564) |
|
|
Immediately |
$ 89.54 |
|
|
| 12 |
W10683556 |
 |
Clip, Condenser (Replaces: W10248621) |
|
|
|
$ 17.44 |
|
|
| 13 |
12477102 |
|
Roller |
|
|
Immediately |
$ 6.64 |
|
|
| 14 |
12992101 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WPW10169124 |
|
Grommet (Replaces: 10835903) |
|
|
|
$ 6.80 |
|
|
| 16 |
W11411956 |
|
Condenser (also Order The Following Lokring Parts) |
|
|
|
$ 205.85 |
|
|
| 17 |
W10281329 |
|
Clip, Drier |
|
|
|
$ 12.36 |
|
|
| 18 |
W11408656 |
|
Tray, Drip |
|
|
|
$ 41.02 |
|
|
| 19 |
W11417341 |
|
Screw |
|
|
|
$ 12.66 |
|
|
| 20 |
W11598434 |
|
Assembly, Evaporator And Heater (also Order The Following Lokring Parts) (Replaces: W11394387) |
|
|
|
$ 302.09 |
|
|
| 21 |
W11661170 |
 |
Strap, Bale (Replaces: W10174384) |
|
|
Immediately |
$ 10.68 |
|
|
| 22 |
W11127829 |
 |
Motor, Condenser Fan (Replaces: W11505535) |
|
|
Immediately |
$ 203.92 |
|
|
| 23 |
W11380964 |
|
Clip, Heater |
|
|
|
$ 16.68 |
|
|
| 24 |
W11614808 |
|
Harness, Unit (includes Power Cord) (Replaces: W11306948) |
|
|
Immediately |
$ 105.89 |
|
|
| 25 |
W11109499 |
 |
Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
|
Immediately |
$ 35.21 |
|
|
| 26 |
W11727250 |
|
Compressor (also Order The Following Lokring Parts) (Replaces: W11682292) |
|
|
Immediately |
$ 939.35 |
|
|
| 27 |
10623002 |
|
Clip, Evaporator |
|
|
|
$ 10.90 |
|
|
| 28 |
67006434 |
 |
Axle, Roller (Replaces: 12477202) |
|
|
Immediately |
$ 7.11 |
|
|
| 29 |
WPW10406719 |
|
Shroud (Replaces: W10406719) |
|
|
|
$ 74.02 |
|
|
| 30 |
W11553819 |
 |
Insulation, Sound Deadening (Replaces: 2169104) |
|
|
Immediately |
$ 13.29 |
|
|
| 31 |
W11578047 |
|
Tube, Suction (Replaces: W11323444) |
|
|
|
$ 52.19 |
|
|
| 32 |
W11233642 |
|
Clip (Replaces: 2223913) |
|
Appelez-nous
|
- |
|
|
|
| 16A |
W11504445 |
 |
5/4 Nr Ms 00 (heat Loop To Condenser) |
|
|
Immediately |
$ 26.03 |
|
|
| 16B |
W11504431 |
 |
7/5 Nr Ms 00 (compressor To Condenser) |
|
|
Immediately |
$ 24.42 |
|
|
| 20A |
W11506620 |
|
8 Nk Al 00 (suction Line To Evaporator) |
|
|
Immediately |
$ 28.89 |
|
|
| 20B |
W11504450 |
|
4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
|
Immediately |
$ 41.87 |
|
|
| 25A |
W11504445 |
|
5/4 Nr Ms 00 (heat Loop To Condenser) |
|
|
Immediately |
$ 26.03 |
|
|
| 25B |
W11504447 |
 |
5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
|
Immediately |
$ 39.51 |
|
|
| 26A |
W11504431 |
|
7/5 Nr Ms 00 (compressor To Condenser) |
|
|
Immediately |
$ 24.42 |
|
|
| 26B |
W11504415 |
 |
8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
|
Immediately |
$ 23.30 |
|
|
| 26C |
W11506621 |
 |
6 Nk Ms 00 (charging Tube To Compressor) |
|
|
Immediately |
$ 19.80 |
|
|
| 26D |
W11506635 |
 |
Tube, Charging (1/4 In W/ Schrader Valve) |
|
|
Immediately |
$ 33.33 |
|
|
| NI |
ARIF9EF3E505B7CEB5AB5525882DBF27D97 |
|
Refrigerant Charge 56 Grams (r600a) |
|
Appelez-nous
|
- |
|
|
|
