Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11707764 Icemaker   (Replaces: W11707554) In-Stock Immediately $ 484.15

2 W11594479 Housing, Filter   (Replaces: W11580299) In-Stock Immediately $ 230.23

3 W11580300 Bracket, Filter Appelez-nous -
4 W11580303 Tube, Water Appelez-nous -
5 W11632305 Tube, Inlet   (Replaces: W11580305) Special Order $ 127.79

6 W11632308 Tube, Water   (Replaces: W11580307) Special Order $ 83.18

7 W11700301 Assembly, Water Valve   (Replaces: W11580309) Special Order $ 211.46

8 W11594484 Bin, Ice   (Replaces: W11580283) Special Order $ 165.54

9 W11580302 Block, Filter Appelez-nous -
10 W10281589 Tape, Filter Appelez-nous -
11 W11736461 Water Filter Appelez-nous -
12 W11371345 Screw Special Order $ 12.27

13 WP2186494B Cap, Water Filter   (Replaces: W10281557) In-Stock Immediately $ 50.27

14 W10281552 Arm Extension   (Replaces: W10772926) Special Order $ 190.14


    View Diagram in Separate Window     Print Icon   Print Part List

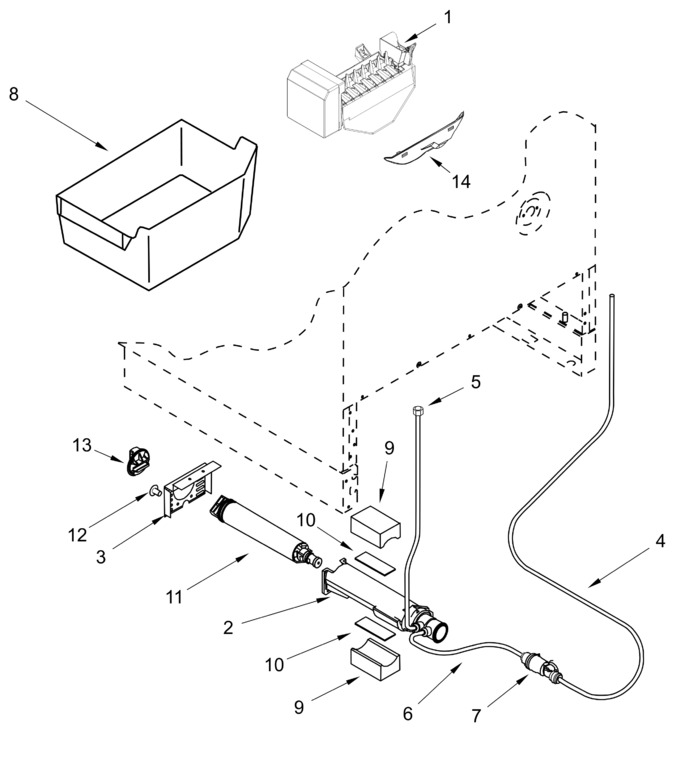

Diagram for JUCFP242HM12
