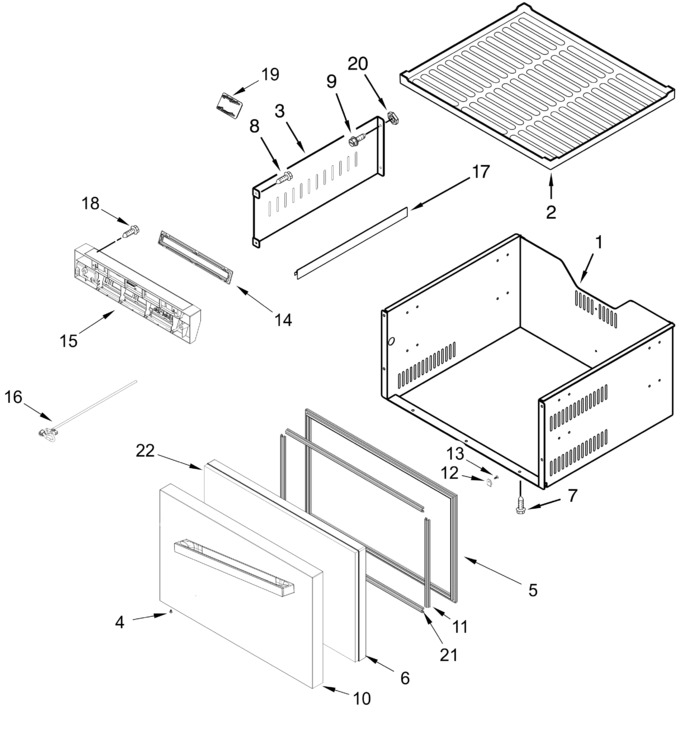

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11758140 | Drawer Box Assembly, Upper (Replaces: W11728577) |
|
- | |||||
| 2 | W11568835 | Mat, Upper Drawer |
|
- | |||||
| 3 | W11599888 | Drawer Partition |
|
$ 169.35 | |||||
| 4 | W11179356 | Stud, Mounting (Replaces: W10772902) |
|
$ 14.96 | |||||
| 5 | W11568837 | Gasket, Door |
|
- | |||||
| 6 | W11782148 | Top Foamed Door (Replaces: W11728597) |
|
Immediately | $ 358.54 | ||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W11758138 | Wrap, Stainless Steel (Replaces: W11728566) |
|
- | |||||
| 11 | W11579578 | Door Gasket, Short (Replaces: W11568838) |
|
- | |||||
| 12 | W11579579 | Plate, Door Handle (Replaces: W11568839) |
|
- | |||||
| 13 | W10859467 | Screw, Handle (Replaces: W10204866) |
|
$ 72.21 | |||||
| 14 | W11312450 | Cover, Led |
|
- | |||||
| 15 | W11599662 | Control Panel Assembly |
|
$ 588.20 | |||||
| 16 | W11592421 | Harness (Replaces: W11576360) |
|
$ 224.70 | |||||
| 17 | W11568842 | Support, Lead Wire |
|
$ 32.81 | |||||
| 18 | W10204808 | Screw |
|
- | |||||
| 19 | W11568841 | Lamp Cover |
|
- | |||||
| 20 | W10204920 | Nut |
|
- | |||||
| 21 | W11774798 | Gasket, Sash (top/bottom) (Replaces: W11360665) |
|
Immediately | $ 105.57 | ||||
| 22 | W11579583 | Insulation, Door (Replaces: W11568934) |
|
- | |||||
| W11758155 | Assembly, Complete Door (Replaces: W11737163) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
