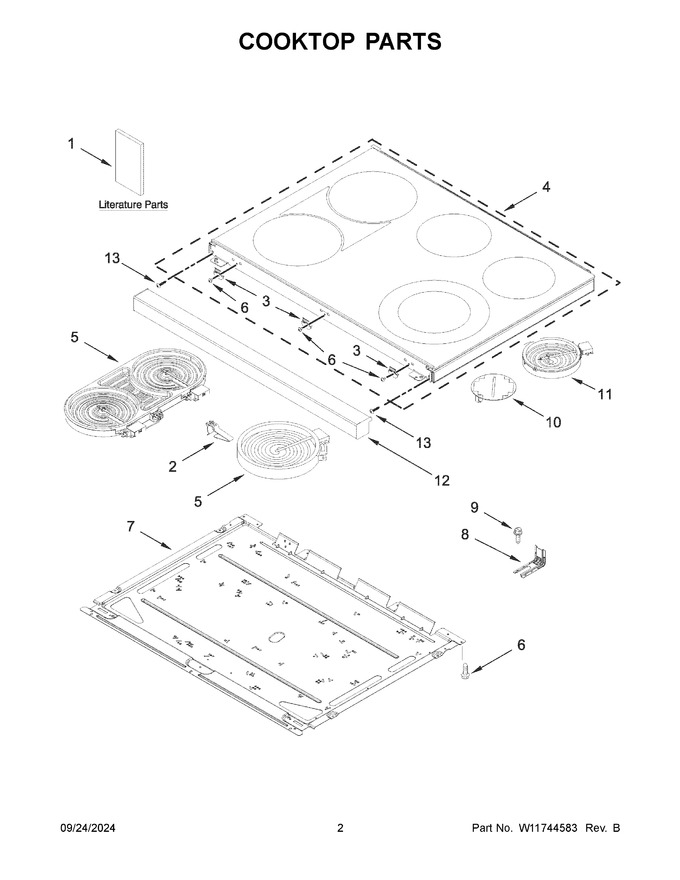

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11638635 | Owners Manual |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11730434 | Cooktop (black (includes, Cooktop Bracket)) (Replaces: W11616645) |
|
$ 950.11 | |||||
| 5 | WPW10248259 | Element, Bridge (left Front And Left Rear) (Replaces: W10248259) |
|
Immediately | $ 374.15 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 10 | W11706247 | Element, Warm Zone (center) (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 11 | W11171119 | Element (1200w) (left Rear, Right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 12 | W11729962 | Bullnose (stainless) (Replaces: W11624928) |
|
Immediately | $ 393.00 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 1A | W11638796 | Quick Start Guide |
|
- | |||||
| 1B | W11639167 | Tech Sheet |
|
- | |||||
| 5A | W11259508 | Element (3200w) (right Front) (Replaces: W11117008) |
|
Immediately | $ 338.51 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | |||||
| NI | W11730324 | Harness, Warm Zone (Replaces: W11448104) |
|
$ 148.03 | |||||
| NI | W11730264 | Harness, Cooktop (Replaces: W11334489) |
|
$ 180.62 | |||||
| NI | W11730480 | Harness, Main (Replaces: W11448071) |
|
$ 356.67 |
