Chassis Parts

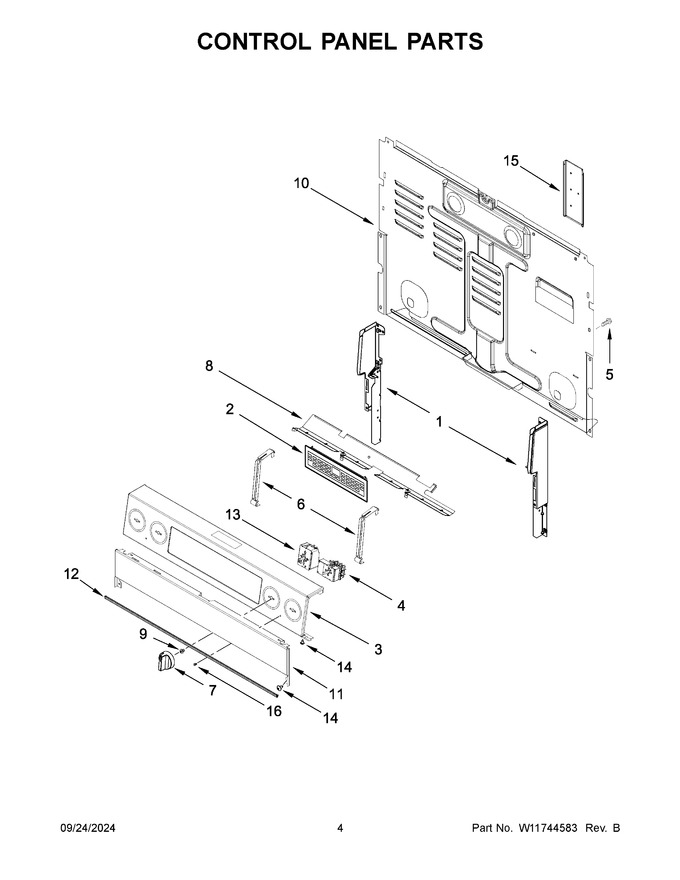

Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728387		Endcap (stainless (left))   (Replaces: W11625424)				$ 104.57
2	W11839352		Control, Electronic (lcx) (black)   (Replaces: W11436172)				$ 577.43
3	W11730308		Panel, Console (stainless)   (Replaces: W11730183)			Immediately	$ 323.10
4	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 215.89
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
6	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
7	W11730309		Knob (stainless)   (Replaces: W11436130)			Immediately	$ 61.73
8	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	W11729935		Cover, Upper Rear (left Front And Right Front)   (Replaces: W11392241)			Immediately	$ 118.82
11	W11729961		Panel, Lower (stainless)   (Replaces: W11625404)				$ 196.92
12	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 52.20
13	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 103.74
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
15	W11747327		Cover, Rear Flue   (Replaces: W11736681)		Appelez-nous	-
16	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
1A	W11728386		Endcap (stainless (right))   (Replaces: W11625421)			Immediately	$ 104.57
