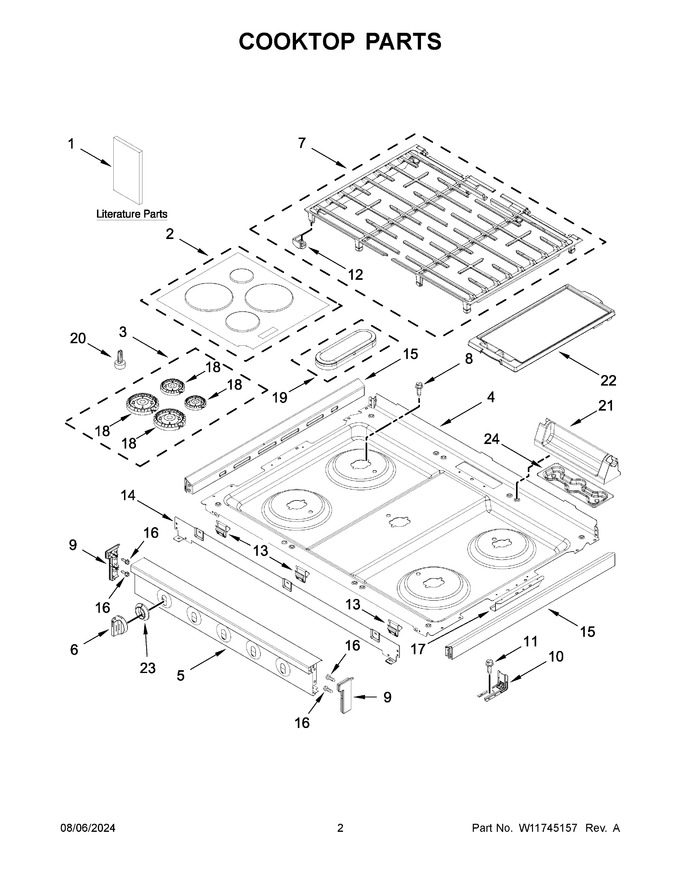

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11642081		Owner's Manual		Appelez-nous	-
2	W11605759		Burner Cap Kit (black (set Of 4))   (Replaces: W11498499)			Immediately	$ 67.82
3	W11671543		Burner Kit (set Of 4)   (Replaces: W11600788)				$ 116.25
4	W11730418		Cooktop (black)   (Replaces: W11279795)				$ 336.92
5	W11730216		Panel, Manifold (black Stainless)   (Replaces: W11393101)			Immediately	$ 361.40
6	W11730230		Knob, Control (black Stainless)   (Replaces: W11632049)		Appelez-nous	-
7	W11728633		Grate Kit (black (set Of 2))   (Replaces: W11622335)				$ 312.98
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
9	W11730066		Panel, Manifold End Cap (black Stainless (left))   (Replaces: W11361197)				$ 76.61
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 12.34
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop Frame (black)   (Replaces: W11736695)				$ 154.40
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
17	W11728390		Spark, Module Bracket   (Replaces: W11366598)		Appelez-nous	-
18	W11531096		Flame Spreader (left Front)   (Replaces: W11352193)				$ 73.73
19	W11729926		Oval Flame Spreader Kit (center)   (Replaces: W11635774)				$ 162.79
20	8016P02260		Glide, Main Top		Appelez-nous	-
21	W11728632		Hinge, Grate   (Replaces: W11621636)				$ 101.65
22	W11728634		Griddle, Cooktop   (Replaces: W11640437)				$ 95.90
23	W11730210		Bezel (black Stainless)   (Replaces: W11632249)		Appelez-nous	-
24	W11729925		Hinge, Spacer   (Replaces: W11623712)			Immediately	$ 15.25
18A	W11531097		Flame Spreader (left Rear)   (Replaces: W11352195)				$ 73.04
18B	W11531098		Flame Spreader (right Rear)   (Replaces: W11352197)				$ 72.65
1A	W11639170		Tech Sheet		Appelez-nous	-
1B	W11641568		Quick Start Guide		Appelez-nous	-
23A	W11730233		Bezel (stainless)   (Replaces: W11632247)				$ 57.29
5A	W11730291		Panel, Manifold (stainless)   (Replaces: W11393100)				$ 356.77
6A	W11730270		Knob, Control (stainless)   (Replaces: W11632045)				$ 61.43
9A	W11730070		Panel, Manifold End Cap (black Stainless (right))   (Replaces: W11361196)				$ 76.61
9B	W11730268		Panel, Manifold End Cap (stainless (left))   (Replaces: W11386024)				$ 76.48
9C	W11730267		Panel, Manifold End Cap (stainless (right))   (Replaces: W11386023)				$ 76.48
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730263		Harness, Main   (Replaces: W11334462)		Appelez-nous	-
NI	W11730264		Harness, Cooktop   (Replaces: W11334489)				$ 162.56
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 53.19
