Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts

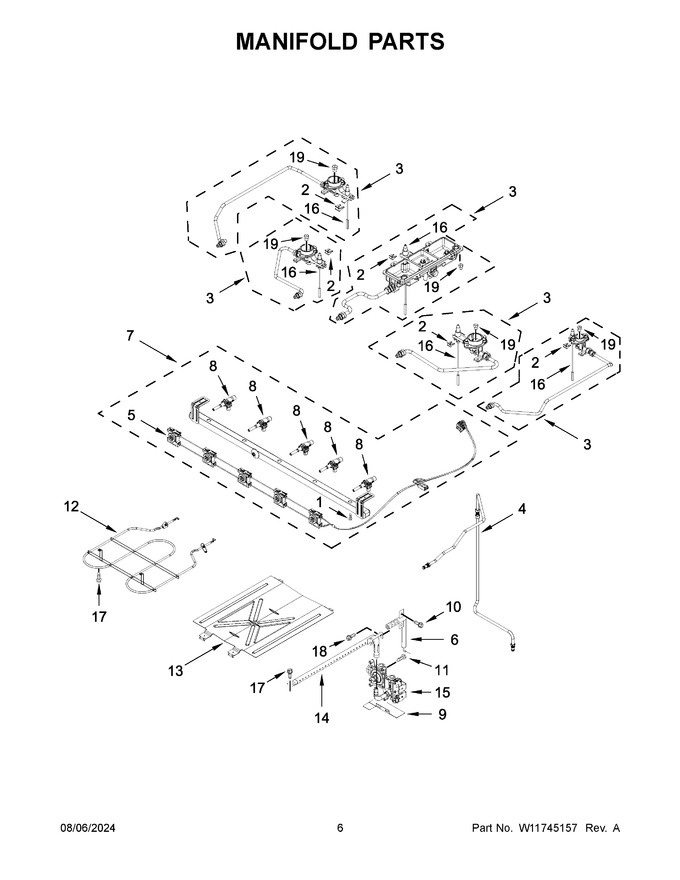

Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 11.39
3	W11728581		Orifice Holder Assembly (18k) (left Front)   (Replaces: W11300870)		Appelez-nous	-
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 118.18
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 129.01
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 78.97
7	W11727047		Manifold Assembly   (Replaces: W11279816)		Appelez-nous	-
8	W11728580		Valve, Single (right Front And Center)   (Replaces: W11279839)			Immediately	$ 84.85
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 12.84
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 106.10
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 228.17
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 203.46
15	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 354.29
16	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 58.01
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
18	3196265		Screw		Appelez-nous	-
19	W10849722		Orifice (18k) (left Front)		Appelez-nous	-
16A	W11453920		Electrode (right Front, Right Rear, And Center)   (Replaces: W11428858)				$ 57.92
16B	W11745758		Electrode (center)   (Replaces: W11581944)		Appelez-nous	-
19A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 89.24
19B	W10907868		Orifice (10k) (center)				$ 81.62
3A	W11727171		Orifice Holder Assembly (10k) (left Rear)   (Replaces: W11300871)		Appelez-nous	-
3B	W11728388		Orifice Holder Assembly (18k) (right Front)   (Replaces: W11300879)			Immediately	$ 72.61
3C	W11727169		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11300867)		Appelez-nous	-
3D	W11728582		Orifice Holder Assembly (12k) (center)   (Replaces: W11634398)		Appelez-nous	-
8A	W11728579		Valve, Single (left Rear)   (Replaces: W11279838)		Appelez-nous	-
8B	W11728578		Valve, Single (right Rear)   (Replaces: W11279837)		Appelez-nous	-
8C	W11727167		Valve, Single (center)   (Replaces: W11629949)		Appelez-nous	-
NI	WPW10182767		Tie, Wire   (Replaces: W11402210)				$ 6.57
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730236		Lp Conversion Kit   (Replaces: W11370714)				$ 45.32
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 46.90
