01 - Cover Sheet

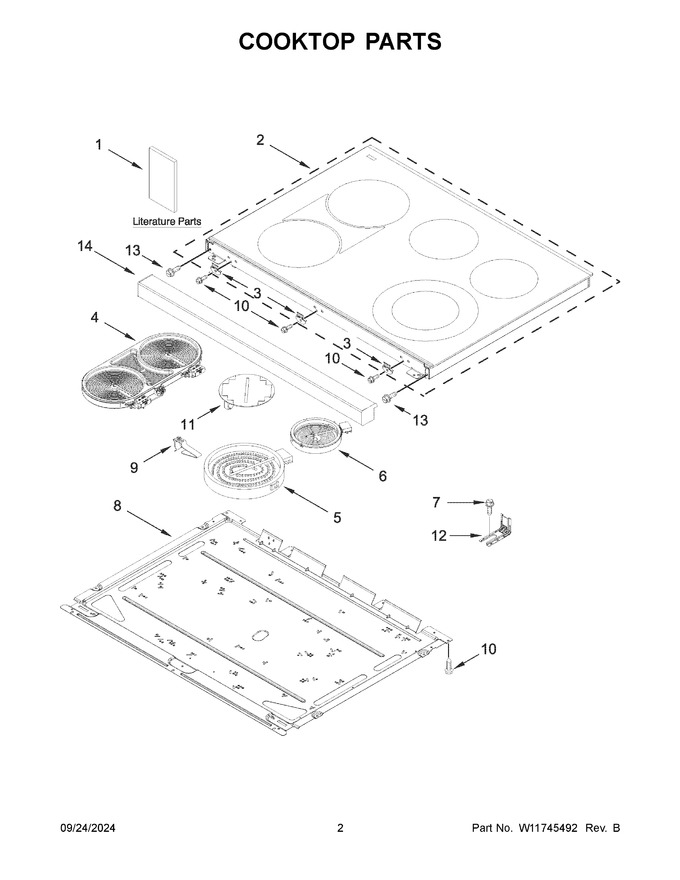

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11640146		Owner's Manual		Appelez-nous	-
2	W11730432		Cooktop (black (includes, Cooktop Bracket))   (Replaces: W11633168)				$ 506.35
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 10.37
4	WPW10248259		Element, Bridge (left Front And Left Rear)   (Replaces: W10248259)			Immediately	$ 336.74
5	W11517959		Element (3000w Dual) (left Front)   (Replaces: W11282542)			Immediately	$ 132.01
6	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 129.14
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11706247		Element, Warm Zone (center)   (Replaces: W11668631)			Immediately	$ 120.55
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
13	W11684512		Screw   (Replaces: 3400080)				$ 13.33
14	W11729962		Bullnose (stainless)   (Replaces: W11624928)			Immediately	$ 353.70
1A	W11638796		Quick Start Guide		Appelez-nous	-
1B	W11639166		Tech Sheet		Appelez-nous	-
NI	W11730300		Harness, Main   (Replaces: W11706940)			Immediately	$ 313.61
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 24.32
NI	3196896		Clip, Wire		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11729983		Harness, Cooktop   (Replaces: W11706939)		Appelez-nous	-
