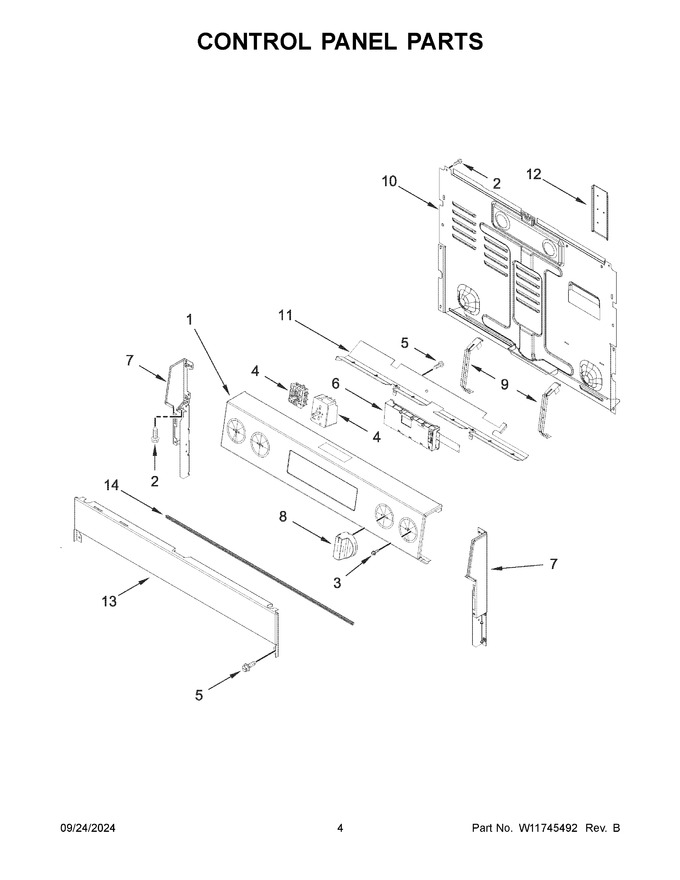

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11742396 | Console (stainless) (Replaces: W11730176) |
|
$ 323.10 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 4 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 226.69 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 6 | W11757143 | Board, Control (black) (Replaces: W11637094) |
|
Immediately | $ 377.36 | ||||
| 7 | W11728387 | Endcap (stainless (left)) (Replaces: W11625424) |
|
$ 104.57 | |||||
| 8 | W11728257 | Knob (stainless) (Replaces: W11584001) |
|
Immediately | $ 38.13 | ||||
| 9 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 10 | W11726751 | Cover, Upper Rear (Replaces: W11393668) |
|
$ 118.79 | |||||
| 11 | W11730262 | Shield, Heat (Replaces: W11363806) |
|
$ 78.37 | |||||
| 12 | W11729912 | Cover, Rear Flue (Replaces: W11394231) |
|
Immediately | $ 95.88 | ||||
| 13 | W11729961 | Panel, Lower (stainless) (Replaces: W11625404) |
|
Immediately | $ 196.92 | ||||
| 14 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 52.20 | |||||
| 4A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 22.46 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 108.94 | ||||
| 7A | W11728386 | Endcap (stainless (right)) (Replaces: W11625421) |
|
Immediately | $ 104.57 |
