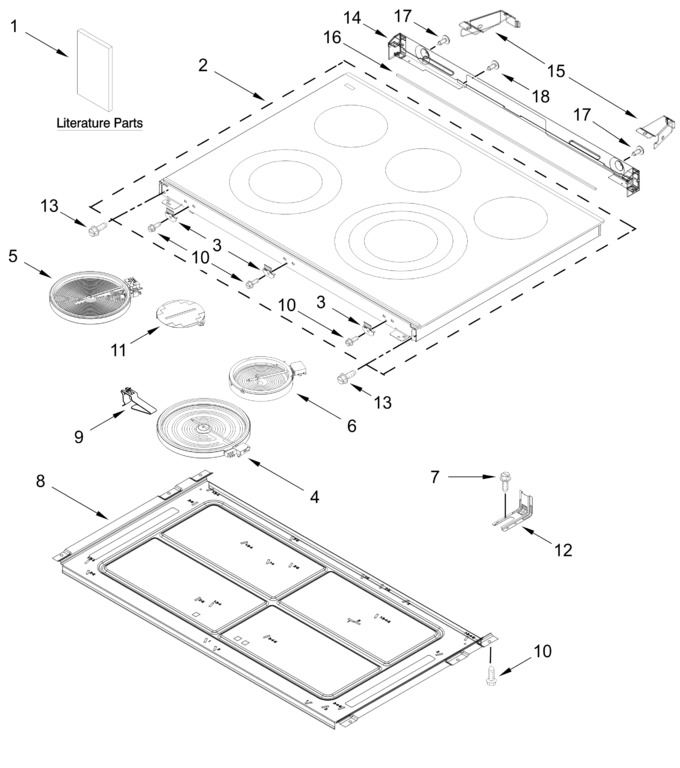

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11755008 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11616660) |
|
$ 1,179.05 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 10.37 | ||||
| 4 | W11747429 | Element (3000w, Triple) (Replaces: W11726009) |
|
Immediately | $ 280.18 | ||||
| 5 | W11747448 | Element (dual, 3000w) (Replaces: W11726010) |
|
Immediately | $ 192.83 | ||||
| 6 | W11747449 | Element (single, 1200w) (Replaces: W11724296) |
|
$ 148.68 | |||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 201.29 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 120.55 | ||||
| 12 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 13.33 | |||||
| 14 | W11747424 | Bracket, Rear Cooktop (Replaces: W11632793) |
|
$ 178.99 | |||||
| 15 | W11747357 | Corner, Brace (left) (Replaces: W11673746) |
|
$ 23.89 | |||||
| 16 | W11747383 | Gasket Cooktop, Console (Replaces: W11401890) |
|
$ 40.10 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 18 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| W11751078 | Harness, Main (Replaces: W11444261) |
|
Immediately | $ 246.83 | |||||
| W11747358 | Corner, Brace (right) (Replaces: W11673745) |
|
$ 23.89 | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11640328 | Quick Start Guide |
|
- | ||||||
| W11639168 | Tech Sheet |
|
- | ||||||
| W11640308 | Owner's Manual |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 55.62 | ||||||
| W11747427 | Harness, Cooktop (Replaces: W11341269) |
|
Immediately | $ 194.01 | |||||
| W11747426 | Harness, Dc (Replaces: W11349007) |
|
$ 150.78 | ||||||
| W11747425 | Harness, Console (Replaces: W11341203) |
|
Immediately | $ 201.10 | |||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- |
