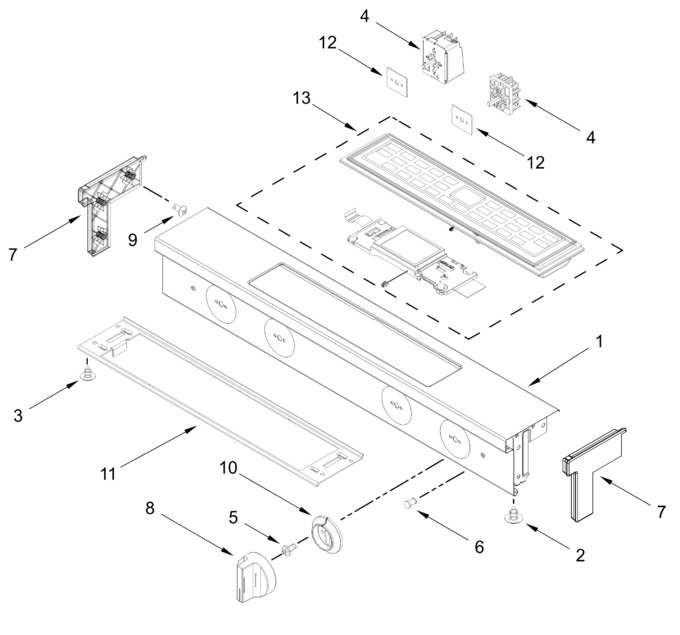

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11747381		Console (stainless)   (Replaces: W11300038)				$ 386.76
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
3	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 215.89
5	W11846982		Screw   (Replaces: W10498399)				$ 10.58
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
7	W11747377		Endcap (stainless, Left)   (Replaces: W11357953)			Immediately	$ 82.81
8	W11730076		Knob (stainless, Single)   (Replaces: W11635836)				$ 91.34
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
10	W11730073		Bezel (stainless)   (Replaces: W11635850)			Immediately	$ 57.06
11	W11747359		Mounting, Bracket   (Replaces: W11291721)		Appelez-nous	-
12	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
13	W11839350		User Interface   (Replaces: W11333900)			Immediately	$ 577.43
	W11129442		Switch, Infinite   (Replaces: W10437097)			Immediately	$ 98.78
	W11747362		Knob (stainless, Triple)   (Replaces: W11635839)			Immediately	$ 56.88
	W11730074		Knob (stainless, Dual)   (Replaces: W11635837)			Immediately	$ 61.56
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11747376		Endcap (stainless, Right)   (Replaces: W11357954)			Immediately	$ 82.81
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 103.74
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
