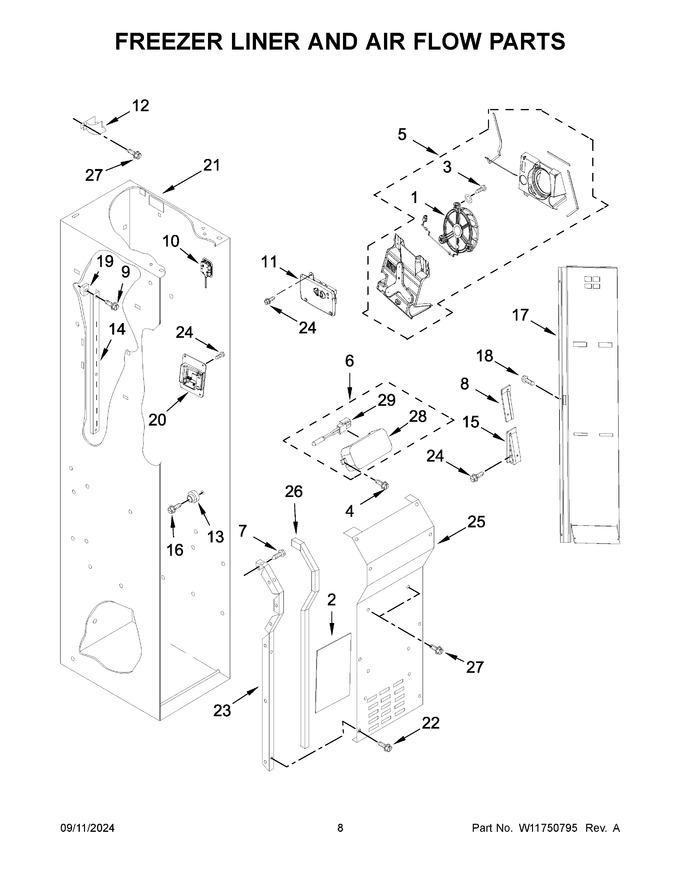

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618271		Fan, Evaporator   (Replaces: W11544700)			Immediately	$ 208.83
2	W11747987		Gasket, Fc Evaporator Bypass   (Replaces: W11678119)		Appelez-nous	-
3	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 7.45
4	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
5	W11631623		Assembly, Evaporator Fan   (Replaces: W11437865)				$ 294.66
6	W11759117		Assembly, Thermistor   (Replaces: W11550867)			Immediately	$ 40.55
7	W11624204		Screw   (Replaces: 486194)				$ 13.25
8	W10769279		Wedge, Air Duct (right Hand)		Appelez-nous	-
9	W10678207		Screw   (Replaces: W10832438)				$ 14.79
10	W11484836		Assembly, Led Module   (Replaces: W11229041)			Immediately	$ 24.31
11	W11737647		Control Board, Receiver   (Replaces: W11685704)				$ 270.95
12	W10775705		Guard, Air Return		Appelez-nous	-
13	W10789219		Assembly, Shelf Stud (includes Screw)				$ 22.89
14	W11481486		Ladder, Shelf		Appelez-nous	-
15	W10769280		Wedge, Air Duct (left Hand)		Appelez-nous	-
16	W10784949		Screw (black)				$ 10.27
17	W11751992		Duct, Air   (Replaces: W11712785)		Appelez-nous	-
18	W10784922		Screw (black)		Appelez-nous	-
19	520965		Support, Ladder				$ 28.22
20	W11751969		Control Board, Emitter   (Replaces: W11685705)				$ 274.43
21	ARI8B23AD81B97D70C7853D17BAA6EEAA2D		Liner (not A Serviceable Part)		Appelez-nous	-
22	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
23	W11756941		Rail, Evaporator Cover (left Hand)   (Replaces: W11695307)		Appelez-nous	-
24	WP98008545		Screw (black)   (Replaces: W10308487)				$ 16.74
25	W11756949		Cover, Evaporator   (Replaces: W11460631)		Appelez-nous	-
26	W11467832		Gasket, Evaporator Cover				$ 24.25
27	W10678210		Screw (black)				$ 17.82
28	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 97.29
29	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
23A	W11756942		Rail, Evaporator Cover (right Hand)   (Replaces: W11695308)		Appelez-nous	-
