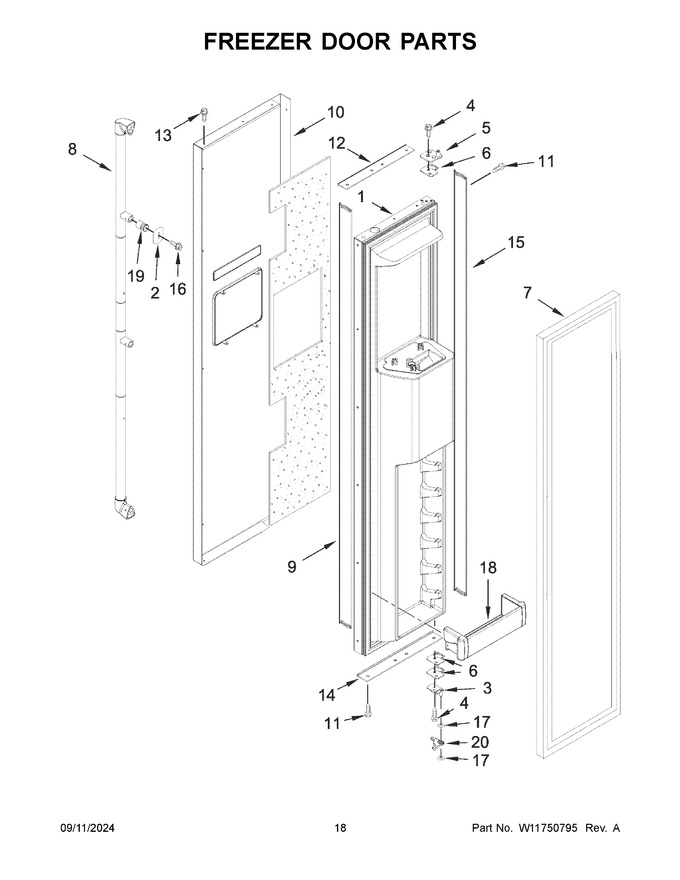

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832391		Door, Freezer   (Replaces: W11502203)				$ 976.91
2	W10127710		Plate, Handle Door			Immediately	$ 23.35
3	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 56.76
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
5	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 117.33
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
7	W10800809		Gasket, Door (black)   (Replaces: W10764833)			Immediately	$ 315.93
8	W11358123		Handle, Door (stainless)		Appelez-nous	-
9	W10758377		Spacer, Handle Side Door				$ 98.81
10	W11633383		Skin, Door (filler (not Serviced-included With Skin))   (Replaces: W11441141)				$ 1,336.37
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	W10758115		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
14	W10758142		Spacer, Door Skin (bottom)				$ 49.92
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
18	W11450392		Bin, Fc Shallow Door				$ 362.03
19	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 11.52
20	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
