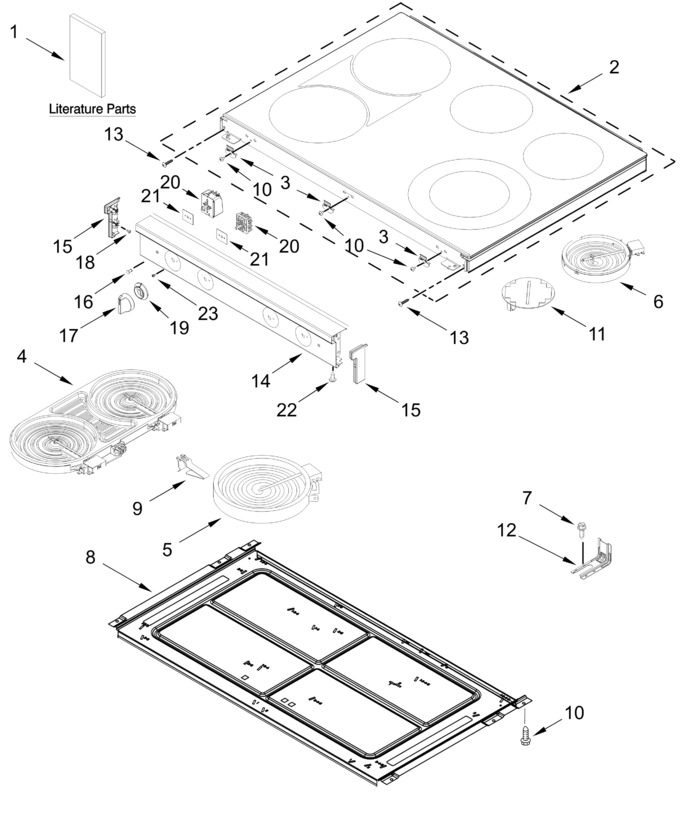

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11730427 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11629537) |
|
$ 1,114.41 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 10.37 | ||||
| 4 | W11763590 | Bridge, (1800w, 800w) (Replaces: W11724301) |
|
$ 245.32 | |||||
| 5 | W11768719 | Element (3000w) (Replaces: W11735737) |
|
$ 166.04 | |||||
| 6 | W11747449 | Element (single, 1200w) (Replaces: W11724296) |
|
$ 148.68 | |||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 201.29 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 120.55 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 13.33 | |||||
| 14 | W11730071 | Panel Upper, Manifold (black Stainless) (Replaces: W11393097) |
|
Immediately | $ 335.98 | ||||
| 15 | W11730066 | Endcap (black Stainless, Left) (Replaces: W11361197) |
|
$ 76.61 | |||||
| 16 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 17 | W11730064 | Knob (black Stainless, Single) (Replaces: W11635841) |
|
- | |||||
| 18 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 19 | W11730062 | Bezel (black Stainless) (Replaces: W11635851) |
|
$ 55.19 | |||||
| 20 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 21 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 23 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| W11730070 | Endcap (black Stainless, Right) (Replaces: W11361196) |
|
$ 76.61 | ||||||
| W11639164 | Tech, Sheet |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 55.62 | ||||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 103.74 | |||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front, Right Rear) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11638635 | Owners Manual |
|
- | ||||||
| W11638798 | Quick Start Guide |
|
- | ||||||
| W11729957 | Harness, Wire (Replaces: W11393541) |
|
Immediately | $ 208.92 | |||||
| W11729953 | Harness, Main (Replaces: W11465034) |
|
$ 305.86 | ||||||
| W11729954 | Harness, Front Dual (Replaces: W11341202) |
|
$ 270.23 | ||||||
| W11729968 | Harness, Cooktop (Replaces: W11341267) |
|
$ 204.11 | ||||||
| W11661906 | Switch, Infinite (Replaces: W10843843) |
|
Immediately | $ 21.38 | |||||
| W11730063 | Knob (black Stainless, Dual) (Replaces: W11635842) |
|
$ 61.56 |
