Chassis Parts


Control Panel Parts

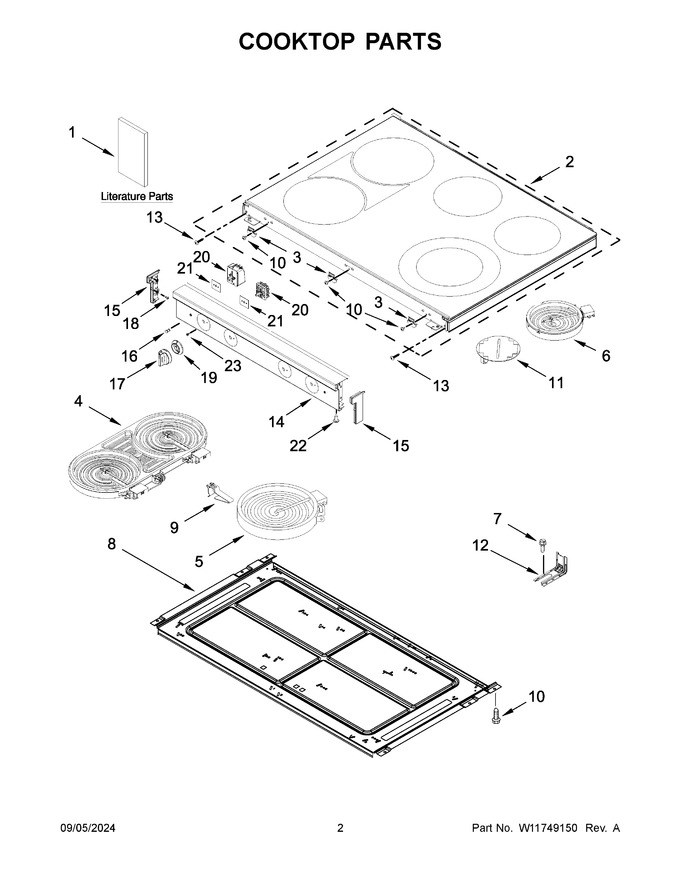

Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11638635		Owners Manual		Appelez-nous	-
2	W11730427		Cooktop (includes, Cooktop Bracket)   (Replaces: W11629537)				$ 1,114.41
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 10.37
4	W11763590		Bridge, (1800w, 800w) (left Front And Left Rear)   (Replaces: W11724301)				$ 245.32
5	W11768719		Element (3000w) (right Front)   (Replaces: W11735737)				$ 166.04
6	W11747449		Element (single, 1200w) (left Rear, Right Rear)   (Replaces: W11724296)				$ 148.68
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11729951		Pan, Radiant Element   (Replaces: W11300812)				$ 201.29
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11706247		Element, Warm Zone (center Rear)   (Replaces: W11668631)			Immediately	$ 120.55
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
13	W11684512		Screw   (Replaces: 3400080)				$ 13.33
14	W11730071		Panel Upper, Manifold (black Stainless)   (Replaces: W11393097)			Immediately	$ 335.98
15	W11730066		Panel, Manifold End Cap (black Stainless (left))   (Replaces: W11361197)				$ 76.61
16	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
17	W11730064		Knob (single, (black Stainless))   (Replaces: W11635841)		Appelez-nous	-
18	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
19	W11730062		Bezel (black Stainless)   (Replaces: W11635851)				$ 55.19
20	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 215.89
21	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
23	W11846982		Screw   (Replaces: W10498399)				$ 10.58
15A	W11730070		Panel, Manifold End Cap (black Stainless (right))   (Replaces: W11361196)				$ 76.61
17A	W11730063		Knob (dual, (black Stainless))   (Replaces: W11635842)				$ 61.56
1A	W11638798		Quick Start Guide		Appelez-nous	-
1B	W11639164		Tech, Sheet		Appelez-nous	-
NI	W11729952		Harness, Hidden Bake   (Replaces: W11585874)				$ 55.62
NI	W11729968		Harness, Cooktop   (Replaces: W11341267)				$ 204.11
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11729957		Harness, Wire   (Replaces: W11393541)			Immediately	$ 208.92
NI	W11729953		Harness, Main   (Replaces: W11465034)				$ 305.86
NI	W11729954		Harness, Front Dual   (Replaces: W11341202)				$ 270.23
