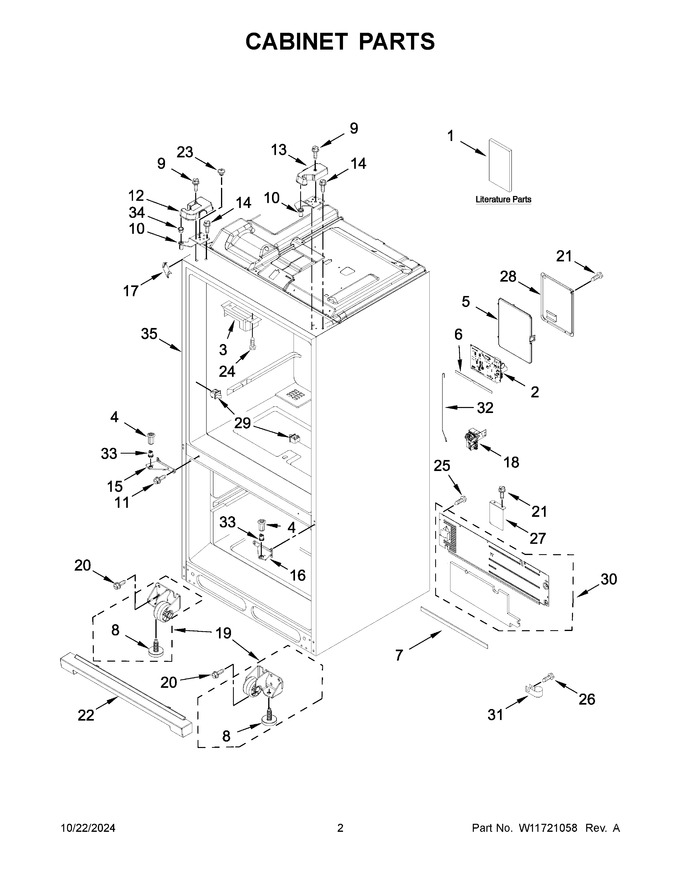

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11502338 | Owners Manual |
|
- | |||||
| 2 | W11756839 | Board, Control (Replaces: W11724451) |
|
Immediately | $ 381.70 | ||||
| 3 | WPW10344432 | Block, Pivot (Replaces: W10344432) |
|
Immediately | $ 17.24 | ||||
| 4 | W11755722 | Door, Bottom Cam (Replaces: W10694625) |
|
- | |||||
| 5 | W10768379 | Lid, Hv |
|
$ 75.24 | |||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 33.30 | |||||
| 7 | W11534848 | Gasket |
|
Immediately | $ 20.11 | ||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 9 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 10 | W11592405 | Hinge, Top (left Hand) (Replaces: W11456644) |
|
$ 29.08 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 12 | WPW10471618 | Cover, Top Hinge Left Hand (grey) (Replaces: W10471618) |
|
$ 22.74 | |||||
| 13 | WPW10407158 | Cover, Top Hinge Right Hand (grey) (Replaces: W10407158) |
|
$ 20.68 | |||||
| 14 | W11126052 | Screw (Replaces: W10731474) |
|
Immediately | $ 13.26 | ||||
| 15 | W10878115 | Hinge, Center Left Hand (grey) (Replaces: W10248706) |
|
Immediately | $ 69.17 | ||||
| 16 | W11240748 | Hinge, Center Right Hand (grey) (Replaces: W10248703) |
|
$ 70.84 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W11482025 | Valve, Water (Replaces: W11460084) |
|
Immediately | $ 271.67 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 21 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 22 | WPW10637671 | Grille, Toe (grey) (Replaces: W10637671) |
|
Immediately | $ 129.11 | ||||
| 23 | W11214483 | Screw (Replaces: 12992601) |
|
Immediately | $ 13.25 | ||||
| 24 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 26 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 27 | W10336736 | Cover, Roller (Replaces: W11578005) |
|
- | |||||
| 28 | W10754144 | Cover, Control Box |
|
$ 77.54 | |||||
| 29 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 33.57 | ||||
| 30 | W11482027 | Assembly, Unit Cover (Replaces: W11364644) |
|
Immediately | $ 109.22 | ||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 32 | W11482381 | Tube, Water (Replaces: W11296599) |
|
Immediately | $ 101.12 | ||||
| 33 | WPW10505294 | Coupler, Door (Replaces: W10505294) |
|
$ 11.90 | |||||
| 34 | W10212137 | Retainer, Door |
|
$ 12.32 | |||||
| 35 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 10A | W11592404 | Hinge, Top (right Hand) (Replaces: W11456643) |
|
$ 23.31 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 1A | W11662357 | Tech Sheet |
|
- | |||||
| 1B | W11647507 | Energy Guide |
|
- |
