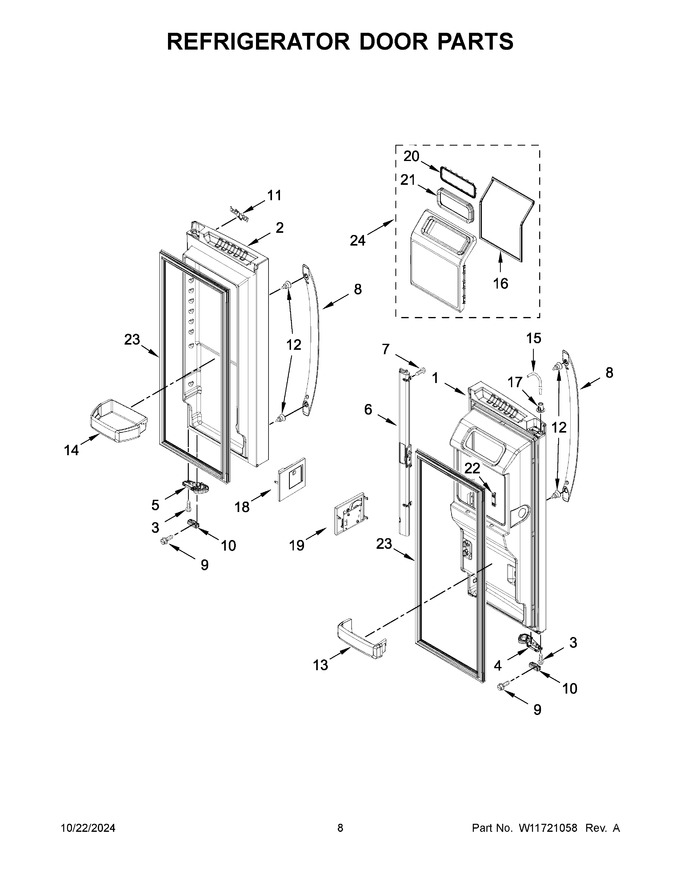

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11518736 | Door, Refrigerator (includes Gasket) Left Hand (stainless) (Replaces: W11405217) |
|
$ 1,017.22 | |||||
| 2 | W11436604 | Door, Refrigerator (includes Gasket) Right Hand (stainless) (Replaces: W11377901) |
|
$ 797.87 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 5 | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 255.29 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 164.98 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 13 | W11366475 | Trivet, 2 Liter (Replaces: W10728185) |
|
Immediately | $ 92.10 | ||||
| 14 | W11371716 | Bin, Gallon (Replaces: W10728194) |
|
Immediately | $ 150.87 | ||||
| 15 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 115.89 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 62.47 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11751996 | Board And Cover Assembly, Emitter (Replaces: W11554030) |
|
$ 296.07 | |||||
| 19 | W11751997 | Board And Cover Assembly, Receiver (Replaces: W11554032) |
|
$ 296.07 | |||||
| 20 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 29.09 | |||||
| 21 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 44.07 | |||||
| 22 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 20.84 | ||||
| 23 | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 296.27 | ||||
| 24 | W11171728 | Assembly, Ice Door (Replaces: W10549592) |
|
$ 194.80 |
