View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

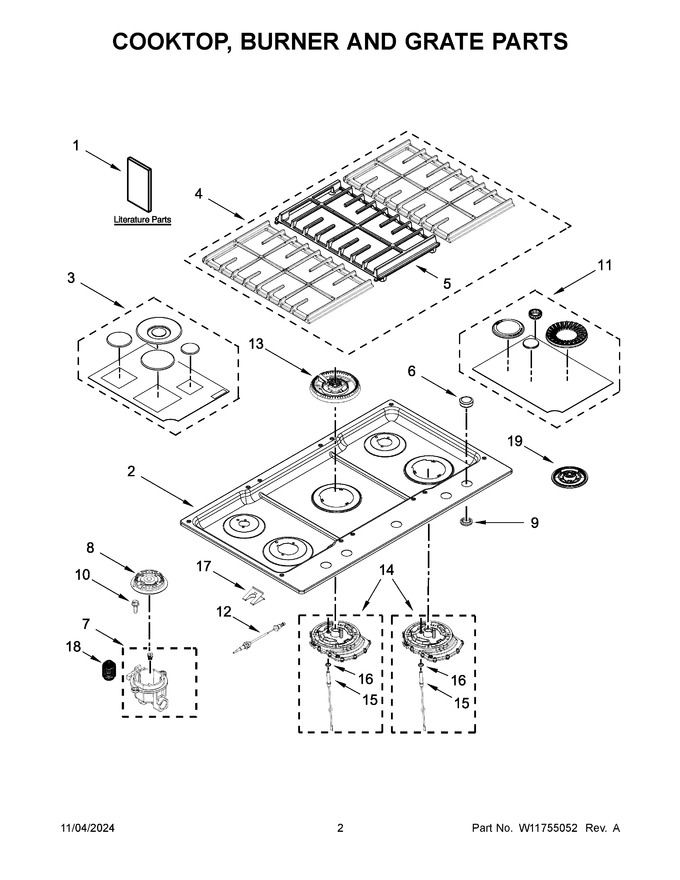

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468901 | Owner's Manual |
|
- | |||||
| 2 | W10722086 | Cooktop |
|
Immediately | $ 385.28 | ||||
| 3 | W10831828 | Kit, Burner Cap (black) (Replaces: W10617346) |
|
Immediately | $ 255.99 | ||||
| 4 | W11503033 | Grate Kit (includes 3 Grates) (black) (Replaces: W11108276) |
|
$ 348.71 | |||||
| 5 | W10583862 | Grate, Center |
|
$ 283.37 | |||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 124.48 | ||||
| 8 | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 112.13 | ||||
| 9 | W11117438 | Bezel, Knob (Replaces: W10593530) |
|
Immediately | $ 51.91 | ||||
| 10 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 13.28 | ||||
| 11 | W10836474 | Kit, Burner Cap (black) (includes Melt Cap) (Replaces: W10635601) |
|
Immediately | $ 371.00 | ||||
| 12 | W10628302 | Wiring, Electrode (left Front) |
|
$ 75.53 | |||||
| 13 | W10836409 | Spreader, Burner (Replaces: W10808715) |
|
Immediately | $ 123.25 | ||||
| 14 | W11173537 | Assembly, Burner Base (10k) (right Front) (Replaces: W10617373) |
|
Immediately | $ 180.64 | ||||
| 15 | W11721763 | Electrode, Burner (right Front) (Replaces: W10657995) |
|
Immediately | $ 42.34 | ||||
| 16 | W10416057 | O-ring |
|
$ 70.32 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 18 | W11690598 | Spring, Torch Burner (Replaces: W10554297) |
|
$ 18.96 | |||||
| 19 | W11678108 | Support, Flame Spreader (Replaces: W10631209) |
|
$ 80.36 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W11439332) |
|
Immediately | $ 54.80 | ||||
| 12B | W10628303 | Wiring, Electrode (right Rear) |
|
$ 82.40 | |||||
| 14A | W10625853 | Assembly, Burner Base (17k) (center) |
|
$ 253.41 | |||||
| 15A | W11610134 | Electrode, Burner (center) (Replaces: W10657994) |
|
Immediately | $ 28.12 | ||||
| 1A | W11466943 | Quick Start Guide |
|
- | |||||
| 1B | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W11591536 | Tech Sheet |
|
- | |||||
| 7A | W10674920 | Holder, Orifice (10k) (left Front) |
|
$ 36.41 | |||||
| 7B | W10674919 | Holder, Orifice (7k) (right Rear) |
|
$ 31.58 | |||||
| 7B | W10674918 | Holder, Orifice (6k) (left Rear) |
|
Immediately | $ 29.42 | ||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 90.22 | |||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | W10577591 | Harness, Main |
|
$ 87.26 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | |||||
| NI | W11684777 | Insulation, Cooktop (Replaces: W10617404) |
|
- | |||||
| NI | 7101P06260 | Screw (for Tie Down Bracket) |
|
- | |||||
| NI | W11804912 | Harness, Switch (Replaces: W10619016) |
|
$ 542.80 | |||||
| NI | W10392003 | Cord, Power |
|
$ 145.50 | |||||
| NI | W10853432 | Kit, Lp Conversion (Replaces: W10676662) |
|
$ 77.91 |
