SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

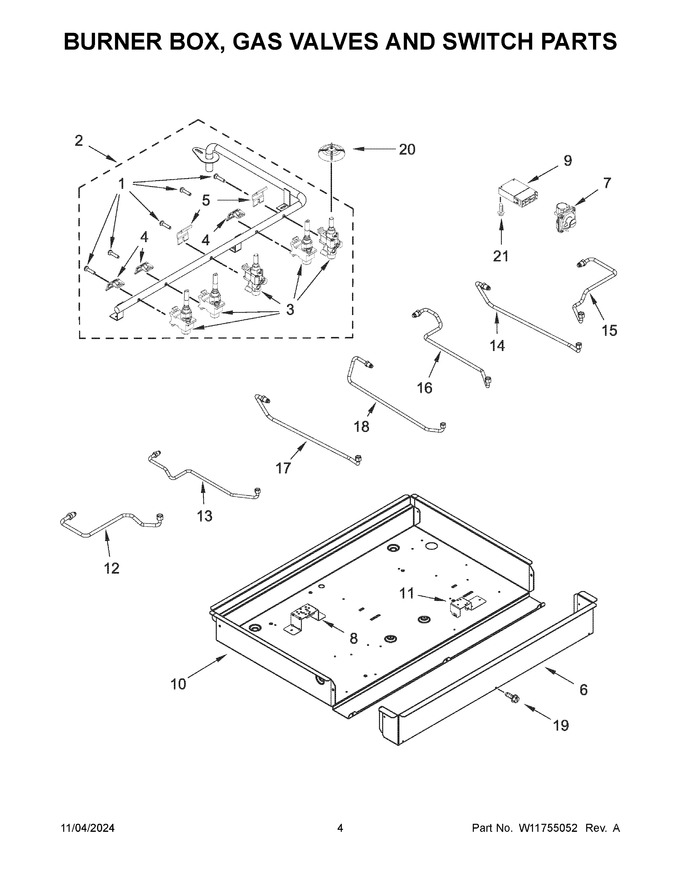

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.66
2	W10682074		Assembly, Manifold				$ 398.46
3	W11702872		Valve, Single (left Front)   (Replaces: W11629615)				$ 28.24
4	8287055		Bracket, Single Valve				$ 68.81
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10705474		Panel, Front		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 190.26
8	W10594429		Bracket, Orifice Holder				$ 21.00
9	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 286.74
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 20.25
12	W10545796		Tubing, Gas Burner (left Front)				$ 74.39
13	W10545797		Tubing, Gas Burner (left Rear)				$ 73.87
14	W10545843		Tubing, Gas Burner (right Front, Main)				$ 76.36
15	W10545844		Tubing, Gas Burner (right Front, Simmer)				$ 77.23
16	W10545798		Tubing, Gas Burner (right Rear)				$ 78.62
17	W10545801		Tubing, Gas Burner (center, Main)				$ 74.87
18	W10545800		Tubing, Gas Burner (center, Simmer)				$ 74.86
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 18.27
21	7101P62660		Screw		Appelez-nous	-
3A	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 27.30
3B	W11703063		Valve, Single (right Rear)   (Replaces: W11629617)				$ 27.30
3C	W11706266		Valve, Dual (right Front And Center)   (Replaces: W11629618)			Immediately	$ 119.78
