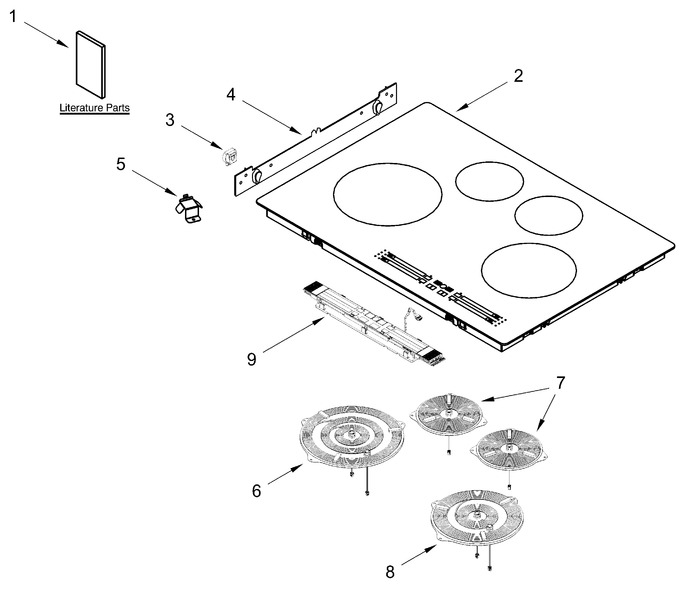

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11809989 | Cooktop, Glass (Replaces: W11755367) |
|
- | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 36.23 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 77.03 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11595236 | Element (6.25 Inch) (Replaces: W11429954) |
|
$ 311.39 | |||||
| 7 | W11560534 | Element (6 Inch) (Replaces: W11429950) |
|
Immediately | $ 178.66 | ||||
| 8 | W11586461 | Element (8 Inch) (Replaces: W11429952) |
|
Immediately | $ 202.55 | ||||
| 9 | W11595237 | Hmi Board (Replaces: W11524571) |
|
$ 370.85 | |||||
| W11362923 | Owner's Manual |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11362960 | Tech Sheet |
|
- | ||||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- | ||||||
| W11362912 | Installation Instructions |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11245478 | Instructions, Undercounter Installation |
|
- |
