SELECT A DIAGRAM
Cooktop Parts
Interior Parts
Optional Parts (not Included)
New Model Search:

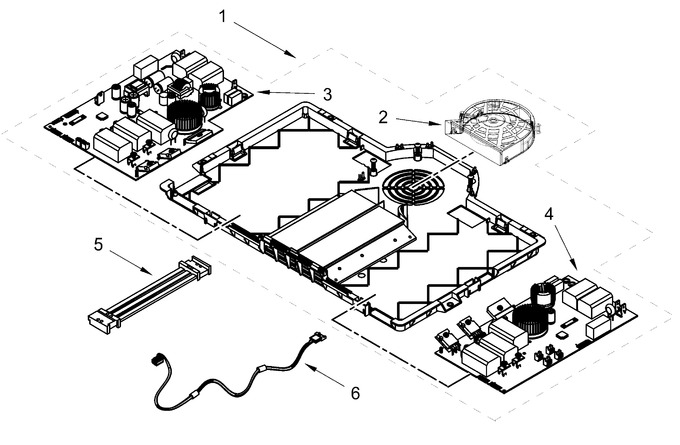

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11814882 | Module Assembly (Replaces: W11716150) |
|
Immediately | $ 635.96 | ||||
| 2 | W11246545 | Blower Assembly |
|
Immediately | $ 279.85 | ||||
| 3 | ARICCA2A18717CE8FBB3D235FD86CE63128 | Power Board Ascari (not Serviced) |
|
- | |||||
| 4 | ARID9BAC193F4EBAD45F26BF3106628DB58 | Power Board Farina (not Serviced) |
|
- | |||||
| 5 | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 47.65 | |||||
| 6 | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 53.91 |
