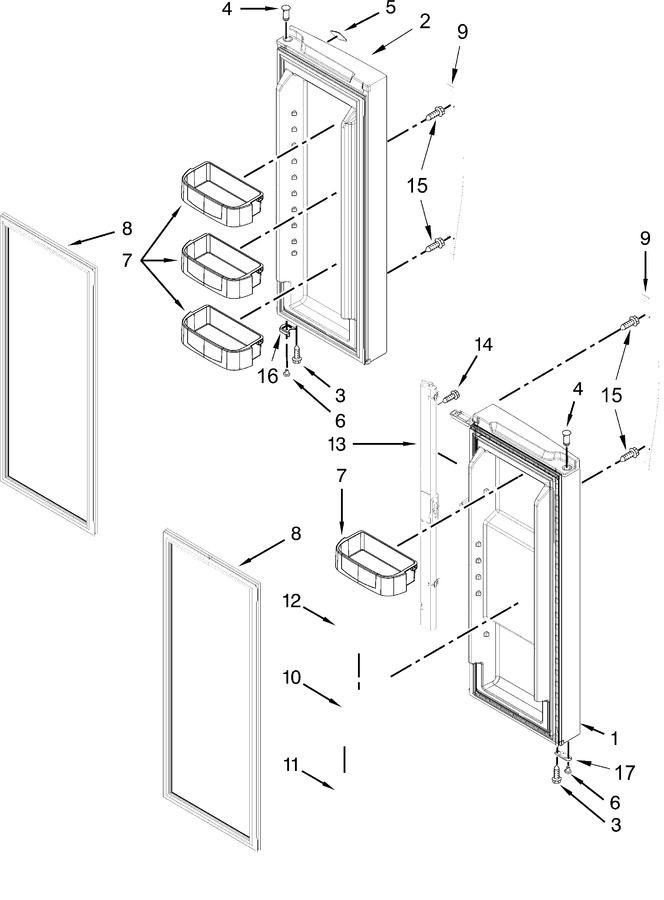

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11654421		Door Assembly (black, Left Hand, Includes Door Gasket)   (Replaces: W11525211)				$ 555.88
2	LW10721541		Door Assembly (black, Right Hand, Includes Door Gasket)   (Replaces: W10721541)				$ 787.40
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 12.56
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.80
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 69.93
8	W10460610		Gasket, Door (black)   (Replaces: W10413465)				$ 251.58
9	W11123097		Handle Assembly (black)   (Replaces: W11101974)				$ 171.40
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 93.42
11	W11106787		Caddy, Condiment   (Replaces: W10462299)			Immediately	$ 96.28
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 58.31
13	W11692845		Assembly, Flipper Mullion (black)   (Replaces: W10624448)				$ 217.49
14	W10854958		Screw   (Replaces: 12990302)				$ 7.11
15	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 33.25
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
