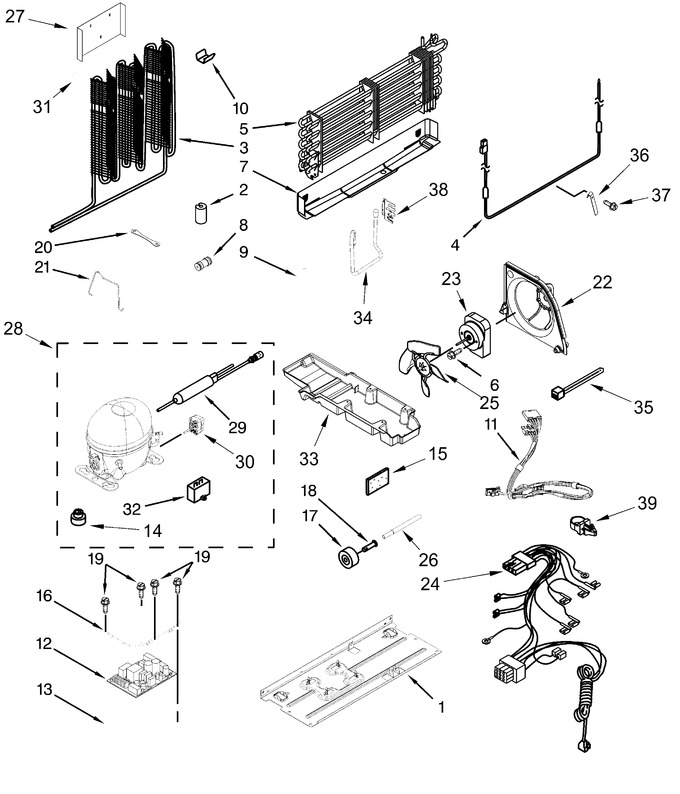

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Baseplate				$ 147.87
2	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 250.38
4	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 80.79
5	W11625643		Assembly, Evaporator   (Replaces: W11341162)			Immediately	$ 355.28
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	W11562216		Heat Shield   (Replaces: W11377819)				$ 41.90
8	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
9	W11284510		Tube, Drain   (Replaces: W11115756)				$ 63.48
10	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
11	W11632351		Assembly, Low Voltage Wire   (Replaces: W11515411)				$ 22.00
12	W11035836		Control, Electronic   (Replaces: W10892333)			Immediately	$ 302.18
13	2323186		Box, Control				$ 96.73
14	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 7.66
15	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 13.29
16	W10313215		Cover, Electronic Control				$ 70.19
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 28.85
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 10.45
20	W10236396		Strap, Compressor			Immediately	$ 18.73
21	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
22	W11605794		Bracket, Condenser Fan   (Replaces: W11509373)			Immediately	$ 74.27
23	WP2188874		Motor, Condenser   (Replaces: W11546725)			Immediately	$ 111.76
24	W11700601		Assembly, Unit Wire   (Replaces: W11432789)			Immediately	$ 183.60
25	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 91.34
26	W11661102		Tube, Process   (Replaces: 2174739)				$ 27.41
27	W10349514		Cover, Condenser Bottom				$ 74.16
28	W11580057		Compressor   (Replaces: W11332033)			Immediately	$ 360.14
29	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
30	W11547180		Device, Combination Start (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 41.31
31	W10815861		Clip, Bottom Cover				$ 14.22
32	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 52.97
33	W10890667		Tray, Drain   (Replaces: W10802027)				$ 136.76
34	W11741026		Tube, Suction   (Replaces: W11518248)				$ 54.30
35	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
36	W11611126		Heat Probe   (Replaces: W11558549)				$ 20.84
37	WP489478		Screw   (Replaces: 489478)				$ 7.36
38	W11466555		Bracket, Evaporator				$ 31.01
39	2219077		Clip, Harness				$ 57.82
	W11506619		8 Nk Ms 00			Immediately	$ 23.29
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	W11504450		4/1.8 Nr Ms 00			Immediately	$ 41.87
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11504448		5/1.8 Nr Al 00			Immediately	$ 43.72
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	W11506638		(8 Nav)			Immediately	$ 47.18
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	ARIC14DE50D050CC38FEDB76E9F91CBFC41		43 Grams (r600a)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	W11504445		5/4 Nr Ms 00			Immediately	$ 26.03
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	W11504432		6/5 Nr Ms 00			Immediately	$ 23.29
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 23.30
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
