Basket And Tub Parts
Controls And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:

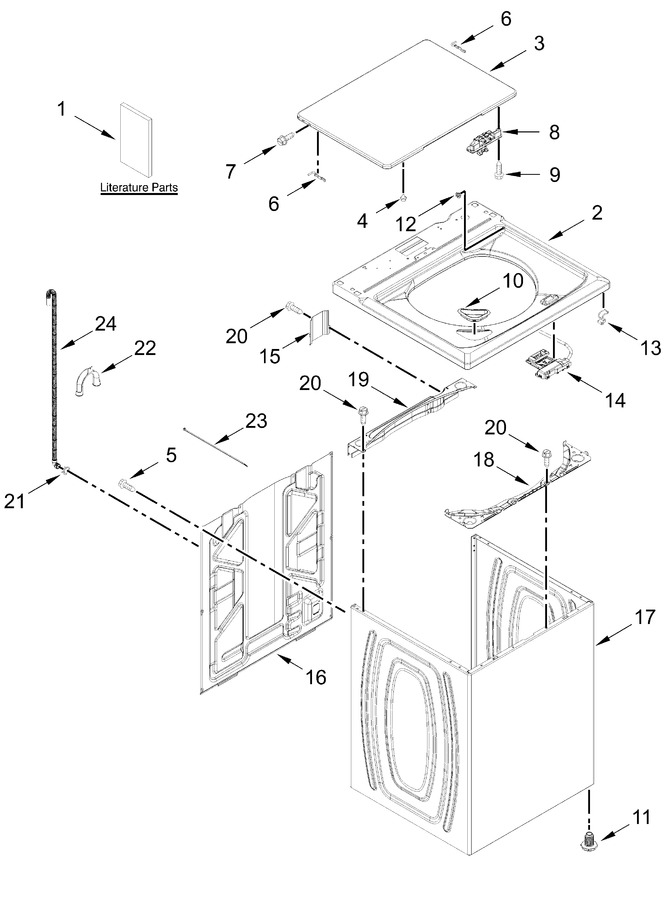

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11210992 | Top (white) (Replaces: W10686446) |
|
Immediately | $ 276.97 | ||||
| 3 | W10860912 | Lid And Bumper Assembly (white) (Replaces: W10027624) |
|
$ 349.26 | |||||
| 4 | WP9724509 | Bumper (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 6 | WP91770 | Hinge, Lid (left) (Replaces: 91770) |
|
$ 25.94 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 6.80 | ||||
| 8 | W10837741 | Lid Lock Strike (white) (Replaces: W10714899) |
|
Immediately | $ 26.69 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 7.52 | ||||
| 11 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 12.82 | ||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
$ 7.21 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W11399614 | Latch, Lid Lock Assembly (Replaces: W11390347) |
|
- | |||||
| 15 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 16 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 433.61 | |||||
| 18 | W11661767 | Channel, Top Front (Replaces: W11634044) |
|
- | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 21 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 22 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 23 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 24 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| WP54583 | Hinge, Lid (right) (Replaces: 54583) |
|
$ 27.94 | ||||||
| W11603135 | Owners Manual |
|
- | ||||||
| W11372860 | Instructions, Installation |
|
- | ||||||
| W11590297 | Quick Start Guide |
|
- | ||||||
| W11643785 | Energy Guide |
|
- |
