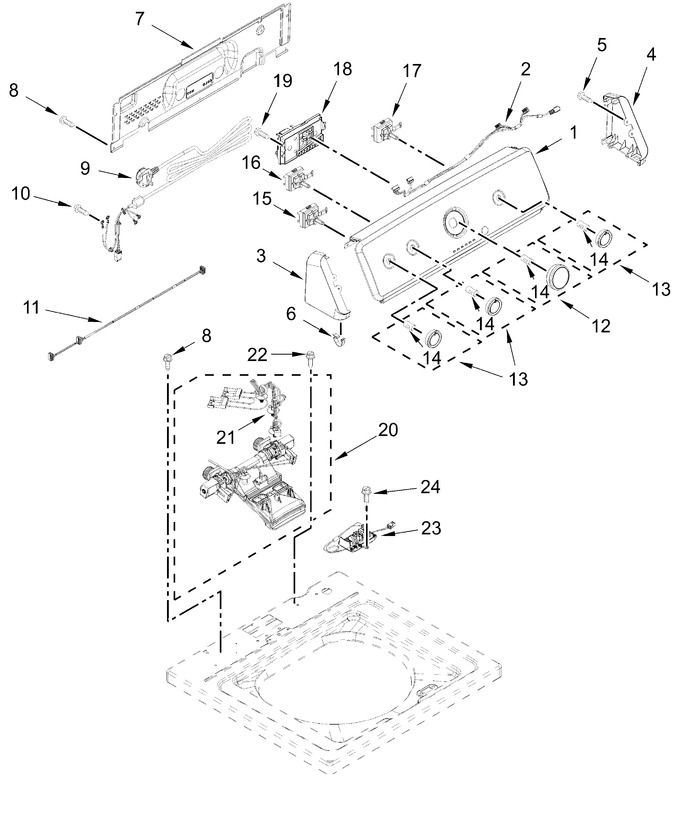

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11370832		Panel, Console		Appelez-nous	-
2	W10694685		Harness, Upper				$ 171.07
3	W10193826		End Cap (white, Left)		Appelez-nous	-
4	W10193823		End Cap (white, Right)		Appelez-nous	-
5	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	W11369863		Cord, Power		Appelez-nous	-
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W10694682		Harness, Upper		Appelez-nous	-
12	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
13	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
14	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
16	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
17	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
18	W11608085		Control Unit Assembly, Machine And Motor   (Replaces: W11578966)		Appelez-nous	-
19	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
20	W11038628		Assembly, Water Inlet   (Replaces: W11026622)				$ 220.41
21	W10917060		Harness, Valve		Appelez-nous	-
22	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
23	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
24	W11568617		Screw   (Replaces: W10567155)				$ 13.25
