Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI1BA464D72C84DA7297AB1B09D16F5BB3 Liner (not A Serviceable Part) Appelez-nous -
2 W11239891 Lens, Light (includes Gasket)   (Replaces: W10166130) Special Order $ 91.37

3 W11777988 Tubing, Water Reservoir   (Replaces: W11676893) In-Stock Immediately $ 35.77

4 W10141518 Screw Special Order $ 8.59

5 W11380595 Diffuser, Air   (Replaces: W11264792) Special Order $ 92.81

6 W11602886 Light Module, Led   (Replaces: W11549780) Special Order $ 38.37

7 W11546609 Control, Electronic   (Replaces: W11478197) In-Stock Immediately $ 204.32

8 W11384469 Switch, Rocker   (Replaces: W10847853) In-Stock Immediately $ 35.18

9 WPW10384183 Thermistor   (Replaces: W10384183) In-Stock Immediately $ 106.62

10 W10901825 Slider, Housing Special Order $ 29.29

11 W10901827 Slider Appelez-nous -
12 W10901826 Connecting Rod Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

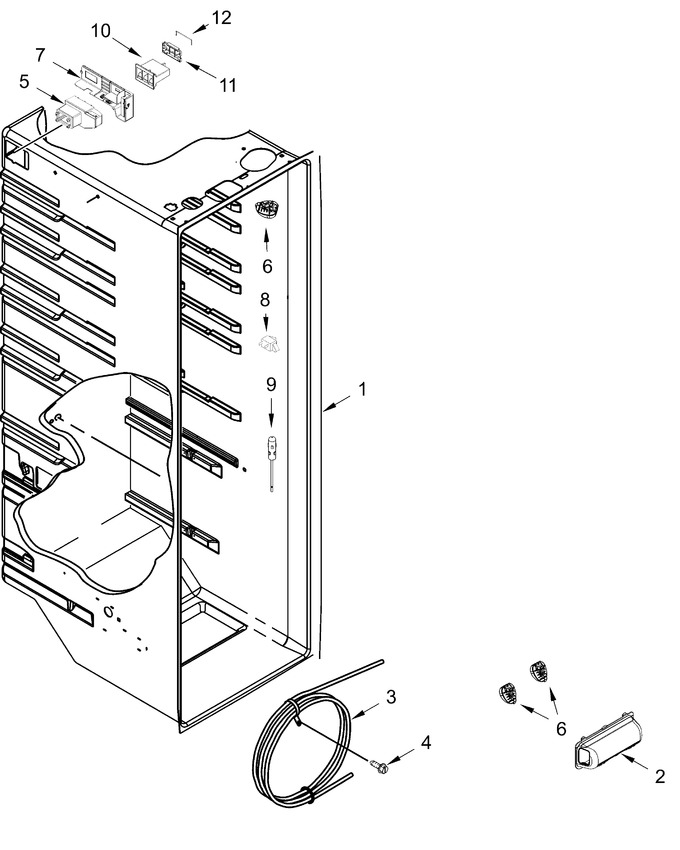

Diagram for WRS311SDHT10
