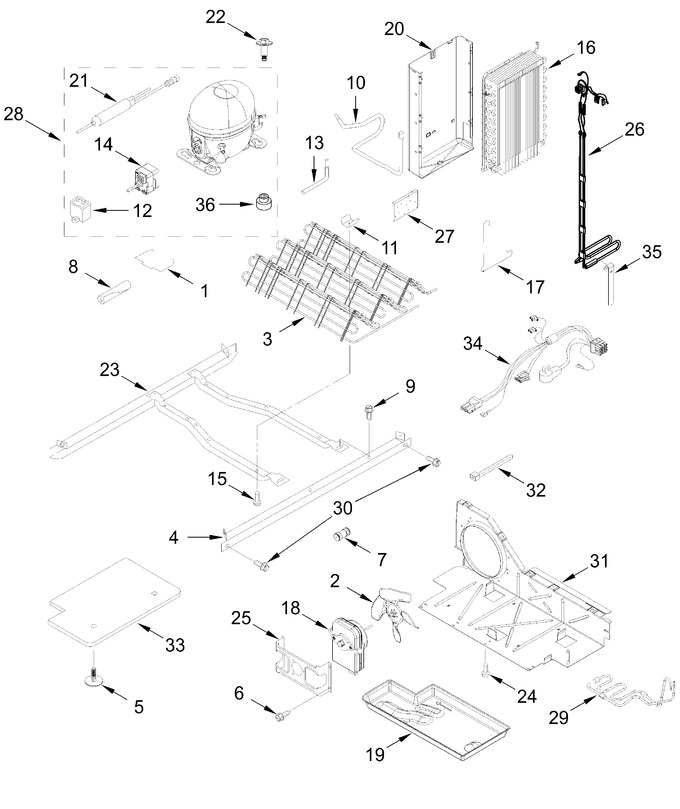

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 22.67
3	W11632924		Condenser   (Replaces: W11553540)			Immediately	$ 213.80
4	W10905882		Rail, Unit Mounting				$ 111.02
5	489396		Clip				$ 10.13
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	WP489427		Screw   (Replaces: 489427)				$ 7.06
10	W11506458		Tube, Suction				$ 39.28
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 17.44
12	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 52.97
13	2325479		Tube, Process		Appelez-nous	-
14	W11547180		Device, Combination Start (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 41.31
15	W11544659		Screw   (Replaces: 8281232)				$ 12.92
16	W11546605		Evaporator   (Replaces: W11357917)			Immediately	$ 228.00
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 77.99
19	W11678304		Tray, Evaporator   (Replaces: W11562498)				$ 51.65
20	W11546608		Heat Shield And Drain Pan Assembly   (Replaces: W11400739)		Appelez-nous	-
21	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
22	W11417341		Screw   (Replaces: W10476309)				$ 12.66
23	W10905880		Frame, Unit Mounting (includes Unit Mounting Rail)				$ 124.00
24	WP489464		Screw   (Replaces: 489464A)			Immediately	$ 7.54
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 11.64
26	W11650659		Heater Harness Assembly, Defrost And Evaporator Fan (includes Thermal Fuse)   (Replaces: W11573115)			Immediately	$ 183.77
27	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 13.29
28	W11580057		Compressor   (Replaces: W11663223)			Immediately	$ 360.14
29	W11678305		Precooler Assembly, Formed (includes Dampener)   (Replaces: W11442858)				$ 59.97
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air				$ 91.08
32	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
33	W10905940		Assembly, Unit Cover (bottom)		Appelez-nous	-
34	W11661849		Assembly, Unit Wire (includes Power Cord)   (Replaces: W11383260)		Appelez-nous	-
35	W11611126		Heat Probe   (Replaces: W11399989)				$ 20.84
36	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 7.66
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	W11504431		7/5 Nr Ms 00			Immediately	$ 24.42
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 23.30
	W11506619		8 Nk Ms 00			Immediately	$ 23.29
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	W11504433		6/4 Nr Ms 00			Immediately	$ 26.46
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 39.51
	ARI8F3D2447D4F0219003D3E6D69BE45DCA		64 Grams (r600a)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	W11506623		5 Nk Ms 00			Immediately	$ 19.80
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	W11504445		5/4 Nr Ms 00			Immediately	$ 26.03
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	W11504449		4/2 Nr Al 00			Immediately	$ 33.70
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
