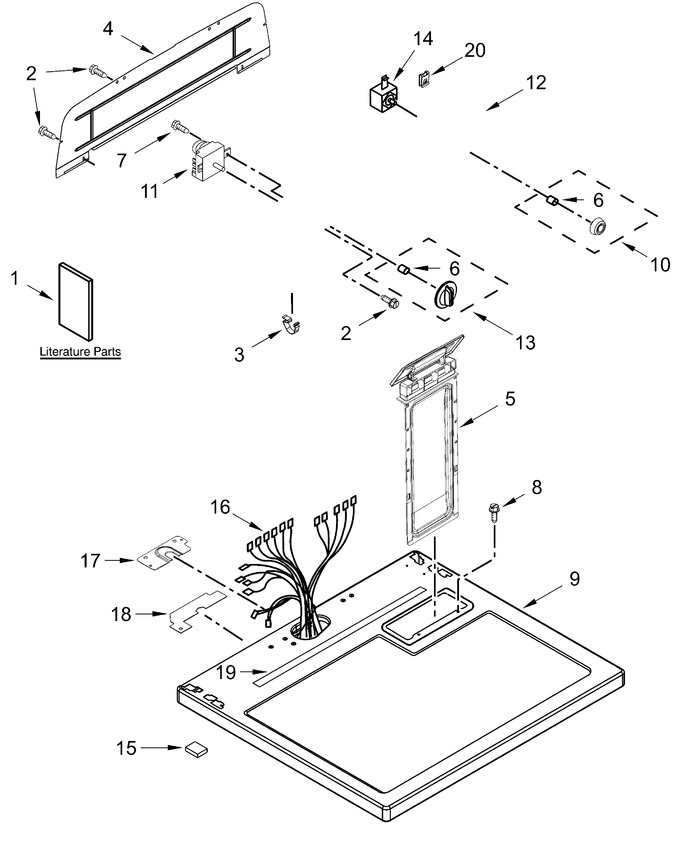

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 119.15
5	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
10	WPW10453948		Knob, Push To Start (white)   (Replaces: W10453948)				$ 46.20
11	W10857612		Timer   (Replaces: W10745655)			Immediately	$ 224.74
12	WPW10097039		Panel, Control   (Replaces: W10097039)				$ 299.48
13	WPW10711289		Timer Knob Assembly (white)   (Replaces: W10711289)			Immediately	$ 7.50
14	WPW10420741		Switch, Push To Start   (Replaces: W10420741)			Immediately	$ 32.81
15	3389682		Spacer, Toe Panel				$ 8.31
16	W10450288		Harness, Main				$ 96.88
17	W10112578		Bracket, Harness		Appelez-nous	-
18	W10112603		Seal, Harness		Appelez-nous	-
19	W10316616		Seal, Foam				$ 25.01
20	W11213336		U-nut   (Replaces: W10298336)				$ 7.32
	W10185990		Wiring Diagram		Appelez-nous	-
	W10781875		Energy Guide		Appelez-nous	-
	W10096991		Use And Care Guide		Appelez-nous	-
	W10514185		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
