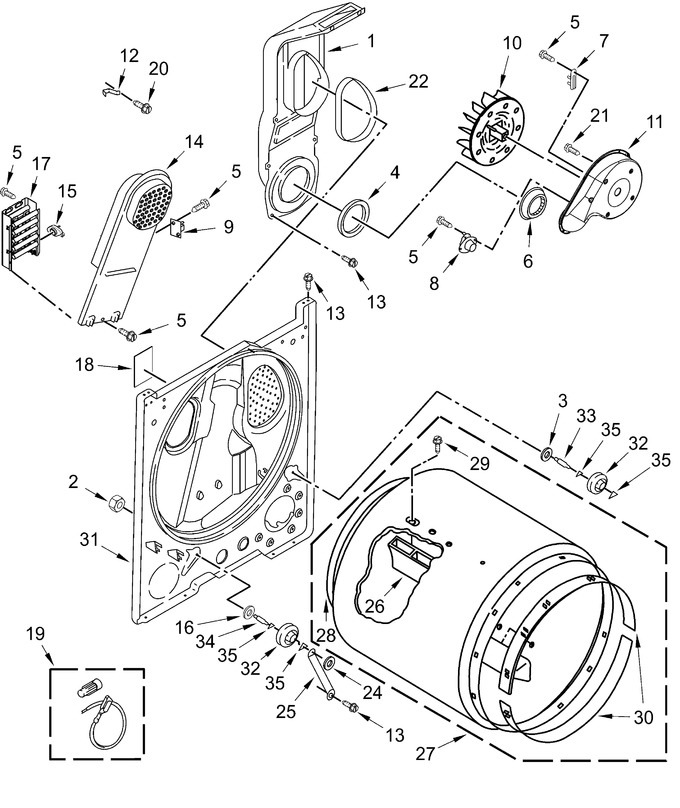

Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces: 348368) |
|
$ 165.38 | |||||
| 2 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 7.78 | ||||
| 3 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.07 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 21.06 | |||||
| 7 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 8 | WP3387134 | Thermostat (Replaces: 3387134) |
|
Immediately | $ 32.31 | ||||
| 9 | 279816 | Thermal Cut-off (Replaces: 3977393) |
|
Immediately | $ 54.64 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 168.17 | |||||
| 12 | 8066155 | Clip, Heater Box |
|
- | |||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 8541818) |
|
$ 266.61 | |||||
| 15 | WP3977767 | Thermostat, 221 F (105 C) (Replaces: 3977767) |
|
Immediately | $ 23.48 | ||||
| 16 | WP348197 | Washer (Replaces: 348197) |
|
$ 6.80 | |||||
| 17 | 279838 | Element, Heater (Replaces: W10724237) |
|
Immediately | $ 84.97 | ||||
| 18 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 21.38 | |||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 20 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 21 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 22 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 23 | WP3403636 | Baffle, Drum (short) (Replaces: 3403636) |
|
$ 131.03 | |||||
| 24 | WP90296 | Nut, Push On (Replaces: 90296) |
|
$ 7.42 | |||||
| 25 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 19.79 | |||||
| 26 | WP692490 | Baffle, Drum (long) (Replaces: 692490) |
|
$ 150.51 | |||||
| 27 | W10899578 | Assembly, Drum (complete) (Replaces: W10757750) |
|
$ 337.98 | |||||
| 28 | W10612022 | Seal, Rear Drum (Replaces: W10725245) |
|
Immediately | $ 56.16 | ||||
| 29 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 30 | 279441 | Bearing, Ring (Replaces: 692526) |
|
Immediately | $ 66.11 | ||||
| 31 | W11178667 | Bulkhead (Replaces: W10714475) |
|
$ 338.91 | |||||
| 32 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 26.58 | ||||
| 33 | WPW10359269 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359269) |
|
Immediately | $ 51.09 | ||||
| 34 | WPW10359270 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359270) |
|
Immediately | $ 65.44 | ||||
| 35 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 |
