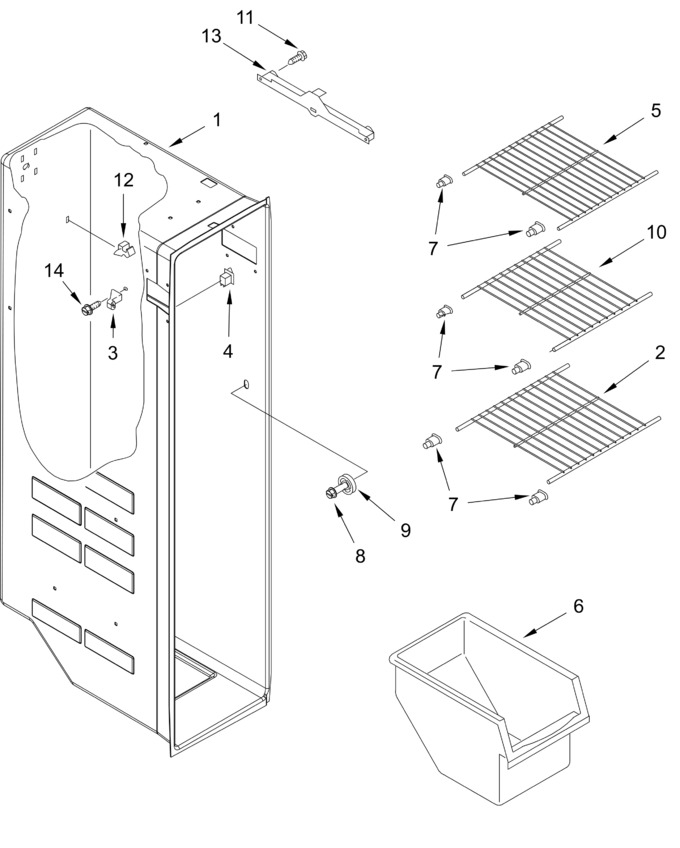

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10318952		Shelf, Wire   (Replaces: W10318952)			Immediately	$ 92.48
3	2196206		Stud, Support		Appelez-nous	-
4	W11384469		Switch, Rocker   (Replaces: W10847853)			Immediately	$ 39.09
5	WPW10318960		Shelf, Wire (short)   (Replaces: W10318960)			Immediately	$ 94.63
6	WP2309758		Bin, Freezer   (Replaces: 2309758)			Immediately	$ 130.69
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
8	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
9	W11223328		Stud, Shelf   (Replaces: 2196208)			Immediately	$ 14.77
10	WPW10318953		Shelf, Wire   (Replaces: W10318953)			Immediately	$ 87.76
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
13	W10845585		Slide, Ice Container (left)				$ 139.41
14	W10142289		Screw   (Replaces: 3400893)				$ 9.61
	W10845583		Slide, Ice Container (right)				$ 130.12
