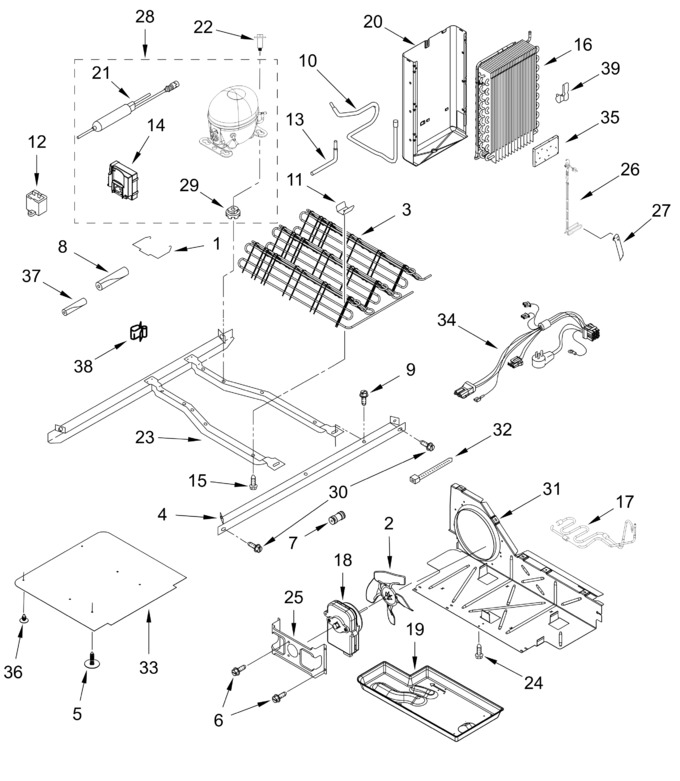

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
3	W11632924		Condenser   (Replaces: W11553540)			Immediately	$ 237.55
4	W10905882		Rail, Unit Mounting				$ 123.35
5	489396		Clip				$ 11.26
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 36.99
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W11506458		Tube, Suction				$ 43.64
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
12	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 58.86
13	2325479		Tube, Process		Appelez-nous	-
14	W11547180		Device, Combination Start (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 45.90
15	W11544659		Screw   (Replaces: 8281232)				$ 14.35
16	W11546605		Evaporator   (Replaces: W11357917)			Immediately	$ 253.33
17	W11678305		Precooler Assembly, Formed (includes Dampener)   (Replaces: W11442858)				$ 66.63
18	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 86.65
19	W11678304		Tray, Evaporator   (Replaces: W11562498)				$ 57.39
20	W11546608		Heat Shield And Drain Pan Assembly   (Replaces: W11400739)		Appelez-nous	-
21	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
22	W11417341		Screw   (Replaces: W10476309)				$ 14.07
23	W10905880		Frame, Unit Mounting (includes Unit Mounting Rail)				$ 137.78
24	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.93
26	W11650659		Heater Harness Assembly, Defrost And Evaporator Fan (includes Thermal Fuse)   (Replaces: W11573115)			Immediately	$ 204.19
27	W11611126		Heat Probe   (Replaces: W11399989)				$ 23.16
28	W11580057		Compressor   (Replaces: W11663223)			Immediately	$ 400.16
29	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 8.51
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air				$ 101.20
32	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
33	W10905940		Assembly, Unit Cover (bottom)		Appelez-nous	-
34	W11661849		Assembly, Unit Wire (includes Power Cord)   (Replaces: W11383260)		Appelez-nous	-
35	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
36	W10000080		Retainer, Push-in		Appelez-nous	-
37	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
38	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
39	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
	W11506623		5 Nk Ms 00			Immediately	$ 22.00
	W11504433		6/4 Nr Ms 00			Immediately	$ 29.40
	ARI8F3D2447D4F0219003D3E6D69BE45DCA		64 Grams (r600a)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	W11506619		8 Nk Ms 00			Immediately	$ 25.88
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	W11504449		4/2 Nr Al 00			Immediately	$ 37.44
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 43.90
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
