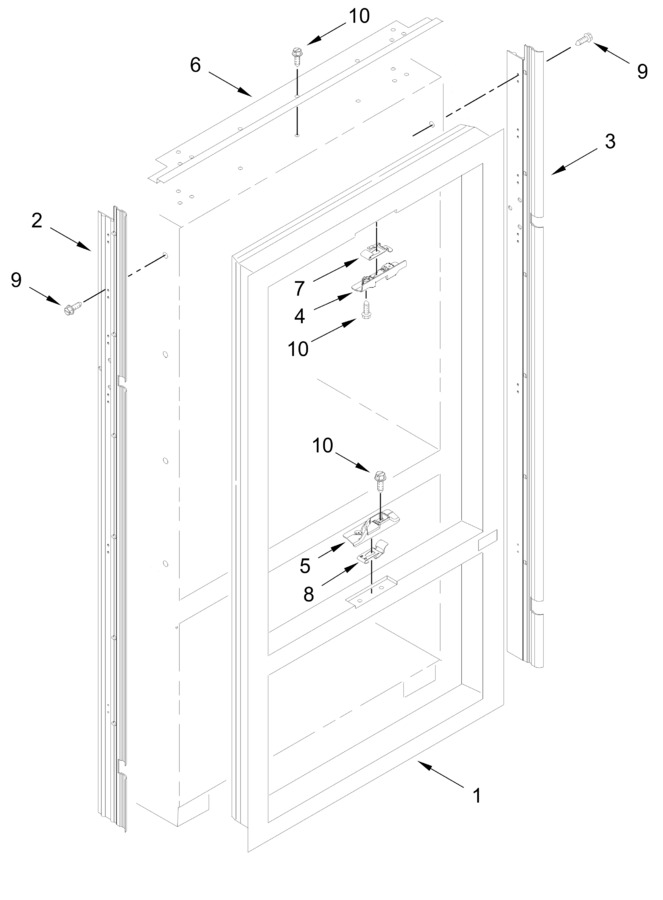

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI589064634E2979140E037AC863CDA0FD | Breaker, Trim (not Serviced) |
|
- | |||||
| 2 | W10714136 | Trim, Cabinet (black, Left Side) |
|
$ 364.25 | |||||
| 3 | W10714135 | Trim, Cabinet (black, Right Side) |
|
$ 364.25 | |||||
| 4 | W10672299 | Contact, Mullion (grey, Top) |
|
$ 76.77 | |||||
| 5 | W10672301 | Contact, Mullion (grey, Bottom) |
|
$ 76.77 | |||||
| 6 | W11623171 | Trim, Cabinet (charcoal Sparkle, Top) (Replaces: W11577753) |
|
$ 154.84 | |||||
| 7 | 2309230 | Contact, Mullion (top) |
|
$ 16.17 | |||||
| 8 | 2309231 | Contact, Mullion (bottom) |
|
$ 54.31 | |||||
| 9 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.55 | |||||
| 10 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 |
